Flat hollow pistons Ø240 × 40 for a 10 in tri-clamp chamber

What flat hollow piston fits a 10 inch tri-clamp chamber? · Hardware · basis: Exact geometry: Ø240 shells in the 10 in bore (Ø247.19), 3.6 radial gap

Also called: large stirling displacer, flat plate stirling displacer, ltd displacer dimensions

Long Earth Society build part. Parts of the HTD engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • A thin closed shell: 0.5 skins top and bottom and a 0.5 rim, a Ø20 hub through the middle with the rod socket, a Ø1 hole in the top skin so the inside follows the mean pressure (the skins never carry the charge pressure, only the flow's few pascals).
  • Mass about 0.57 kg at a density of 7.9 g/cm³ (a lighter shell material scales it). Gap to the bore 3.6 radial: the annulus is the only passage between hot and cold space and the shuttle-loss path (0.5 W air, 2.4 W helium, Martini).
  • Heat leaks through the displacer: the rim skin about 44 W and radiation between the skins about 71 W (ε 0.3, no shield); a foil shield inside cuts the radiation.

Flat hollow pistons Ø240 × 40 for a 10 in tri-clamp chamber size chart

partdiameter (mm)thickness (mm)stroke (mm)socket (mm)
displacer-240x40-rod6240.040.08.030.0

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
ODØ240 in the Ø247.19 borehot cup bore (3.6 radial, no contact)designedall
rod socketØ6 × 30 (M6 as the major diameter)displacer rod, M6 threadpressall
end clearance1.5 to floor and ceiling at the stroke endscup floor, capdesignedall
equalising holeØ1gas (no contact)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

NASA (NTRS, public domain)W. R. Martini, Stirling Engine Design Manual, NASA CR-168088 (1983): shuttle lossPDFUS Government work, public domain
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
displacer-240x40-rod6Ø240 × 40 hollow displacer: 0.5 skins and rim, Ø20 hub, Ø6 rod socket 30 deep (M6 thread as the plain bore), Ø1 equalising holeSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=flat-hollow-pistons-240

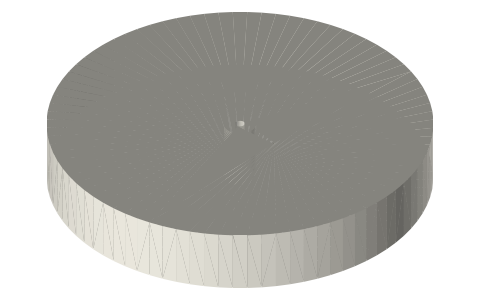

Flat hollow pistons Ø240 × 40 for a 10 in tri-clamp chamber, isometric render of a generated part
Render of displacer-240x40-rod6 from the free STEP; not to scale.

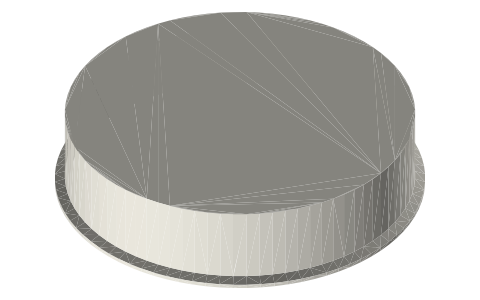

Fits with

Questions

Why is the displacer hollow with a hole?

Light, and the hole lets its inside follow the mean pressure, so a charged engine does not crush it.
