Garden hose thread (GHT 3/4-11.5 NH) dimensions, hose sizes, BSP G3/4 and Gardena for comparison

What thread is a garden hose? · Standard part · basis: ASME B1.20.7 table (Machinery's Handbook), Dixon fitting guide; ISO 228 for BSP; Gardena product pages

Also called: garden hose thread size, ght thread, 3/4 ght dimensions, hose adapter 3d print, garden hose fitting size

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • US garden hose: 3/4-11.5 NH (GHT): 11.5 threads per inch (2.209 mm pitch). Male nipple major Ø26.56–26.99, pitch Ø25.34–25.55, minor ≤24.12 mm. Female coupling major ≥27.24, minor 24.37–24.80.
  • It is NOT pipe thread: 3/4 in NPT (14 TPI, tapered) and BSP G3/4 (14 TPI, Ø26.44 major) look close and cross-thread; GHT seals on the washer, not the threads.
  • Hose sizes are inside diameters: 1/2, 5/8 (a Flexzilla 5/8 is 15.7 mm ID), 3/4 in; ODs are not published.
  • Europe: taps are G3/4 (Gardena '26.5 mm'), G5/8 ('23 mm') and G1/2 ('21 mm'); Gardena click-coupling geometry is not published.
  • Printed GHT parts (free STL): male thread drawn slightly under (major 26.6, minor 24.1) so it threads into real couplings; use the rubber washer to seal, PETG or ASA outdoors.

Garden hose thread (GHT 3/4-11.5 NH) dimensions, hose sizes, BSP… size chart

threadTPIpitch (mm)major (mm)minor (mm)
GHT 3/4-11.5 NH male11.52.20926.56–26.99≤24.12
GHT female coupling11.52.209≥27.2424.37–24.80
BSP G3/4 (ISO 228)141.81426.44124.117

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
male nipple (3/4-11.5 NH)11.5 TPI (2.209 pitch); major Ø26.56–26.99, pitch Ø25.34–25.55, minor ≤24.12female coupling: major ≥27.24, minor 24.37–24.80; seals on the washer, not the threadsdesignedght-male-nipple*
not pipe thread3/4 NPT 14 TPI tapered; BSP G3/4 14 TPI Ø26.44 majorcross-threads with GHT: do not mixdesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Machinery's Handbook (ASME B1.20.7 table)Hose coupling screw threadswebPublisher's page; dimensions are facts
Dixon ValveThread identification guidewebPublisher's page; dimensions are facts
PRESSOLWhitworth pipe thread ISO 228 (G3/4)webPublisher's page; dimensions are facts
GardenaTap connector thread sizeswebPublisher's page; dimensions are facts
Alaska Rubber Group (spec)Flexzilla 5/8 in hosewebPublisher's page; dimensions are facts

Free files

★ Free files 3 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ght-male-nipple-12mm3/4-11.5 GHT male nipple, 12 mm of thread, hex grip, Ø13 boreSTEP · STL
ght-male-to-13mm-tube3/4-11.5 GHT male to a Ø13 socket (1/2 in tubing / drip line)STEP · STL
ght-male-to-16mm-tube3/4-11.5 GHT male to a Ø16 socket (5/8 in hose barb sleeve)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=garden-hose-thread

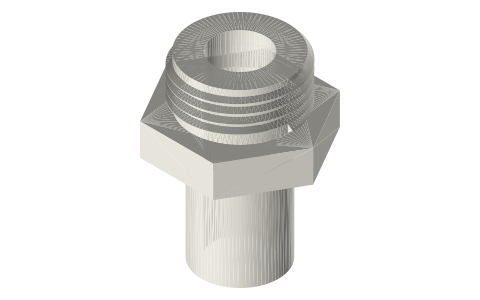

Garden hose thread (GHT 3/4-11.5 NH) dimensions, hose sizes, BSP G3/4 and Gardena for comparison, isometric render of a generated part
Render of ght-male-to-13mm-tube from the free STEP; not to scale.

Fits with

Questions

What size thread is a garden hose?

3/4-11.5 NH (GHT): 11.5 threads per inch, about 26.8 mm across the male thread. It is not 3/4 NPT.
