Rocker with tube and syringe rings on a pivot

What rocker holds a test tube and a syringe on a pivot? · Hardware · basis: My geometry: Ø25 ring at the 25 × 150 tube's OD (DURAN / KIMBLE 25 × 150), Ø15.40 ring at the 5 mL glass barrel's published OD (KD Scientific); tube and syringe on one axis so the transfer line never bends

Also called: test tube stirling engine holder, marble stirling engine rocker, test tube engine pivot

Long Earth Society build part. Rocker of the test-tube marble engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • The tube (hot end out, stopper toward the pivot) and the 5 mL glass syringe (tip toward the stopper) sit on one axis 18 above the pivot; the 4 mm tube through the stopper and a 50 mm silicone tube join them in a straight line, so nothing flexes as it rocks.
  • Pivot: Ø3 bore for a dowel-3x30 through two beam-pivot-post-60 posts (hub 10 wide between them). Lever pin Ø3 at (35, −45) from the pivot for the 170 mm rocking link; with a 7.5 mm crank throw the rocker swings -7.9° to +7.9°.
  • Rings: Ø25 × 12 for the tube, Ø15.40 × 12 for the syringe barrel, each with an M3 grub (set-m3x4, Ø2.5 tapped) that reaches the glass.

Rocker with tube and syringe rings on a pivot size chart

featurevalue
tube ringØ25 × 12
syringe ringØ15.40 × 12
axis above pivot18
lever pin(35, −45), Ø3
swing-7.9..7.9°

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
tube ringØ25 × 1225 × 150 test tube ODsocketall
syringe ringØ15.40 × 125 mL glass syringe barrelsocketall
pivot boreØ3dowel-3x30 pivot pin (turns in it)runall
lever pin boreØ3dowel-3x12pressall
grub holesØ2.5 (M3 tapped)set-m3x4designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

DWK / DURAN (via Parkes Scientific)DURAN test tubes 26 130: 25 × 150 mm, 55 mL, wall 1.0–1.2 mm (cat. 261303308)weblisting verify
DWK Life SciencesKIMBLE reusable culture tube 25 × 150 mm, 55 mL (45048-25150)webmanufacturer page verify
KD ScientificFull Line of Glass Syringes, rev. A (order codes 78-0871 to 78-0880): piston OD, barrel OD D1, barrel collar D2, piston collar D3, length LPDFmanufacturer datasheet verify
WikipediaStirling enginewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
marble-engine-rocker-25x150-glass5rocker: Ø25 ring for the 25 × 150 test tube and Ø15.40 ring for the 5 mL glass barrel on one axis 18 above the Ø3 pivot bore, beam 216 long, lever pin (Ø3) 45 below and 35 beside the pivot at the end of an arm reaching to y −72.5, 2 × M3 tapped (Ø2.5) grubsSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=pivot-rocker-tube-syringe

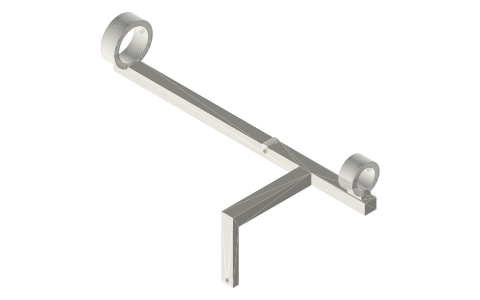

Rocker with tube and syringe rings on a pivot, isometric render of a generated part
