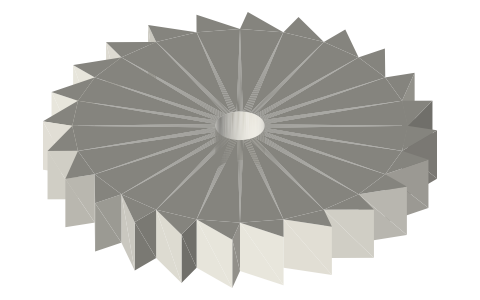

Ratchet wheels Ø40 with 12, 24 and 36 teeth
How are the teeth of a ratchet wheel shaped? · Hardware · basis: Sawtooth wheel: tips at R20, roots at R17 (3 mm deep), each tooth rising over 85 % of the pitch and dropping over 15 %
Also called: ratchet wheel, ratchet gear stl, ratchet teeth design, anti reverse ratchet, one way ratchet 40mm
Used in Long Earth Society builds. Linear-to-rotational output converter
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes
- A Ø40 × 6 wheel with a Ø5 bore and 12, 24 or 36 sawtooth teeth 3 mm deep (tips on R20, roots on R17).
- Each tooth rises from root to tip over 85 % of the pitch (the back) and drops back over 15 % (the face the pawl locks against).
- Steps: 12 teeth 30°, 24 teeth 15°, 36 teeth 10°. Fewer teeth are larger and stronger.
- A one-way drive: anti-reverse on a reel, a hand-wound starter, or between a Stirling flywheel and a generator so the generator never back-drives the engine.
Ratchet wheels Ø40 with 12, 24 and 36 teeth size chart
| file | teeth | step | tip Ø | root Ø | thickness | bore |
|---|---|---|---|---|---|---|
| ratchet-12t-d40 | 12 | 30° | 40 | 34 | 6 | 5 |
| ratchet-24t-d40 | 24 | 15° | 40 | 34 | 6 | 5 |
| ratchet-36t-d40 | 36 | 10° | 40 | 34 | 6 | 5 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| wheel bore | Ø5 | Ø5 shaft | slide | ratchet-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Ratchet (device) | web | CC BY-SA 4.0 (text) |
| Wikipedia | Pawl | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine builds that use these parts (videos and write-ups) | web, video | LES site |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| ratchet-12t-d40 | ratchet wheel Ø40 × 6, 12 teeth 3 mm deep, Ø5 bore | STEP · STL |
| ratchet-24t-d40 | ratchet wheel Ø40 × 6, 24 teeth 3 mm deep, Ø5 bore | STEP · STL |
| ratchet-36t-d40 | ratchet wheel Ø40 × 6, 36 teeth 3 mm deep, Ø5 bore | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=ratchet-wheels

How it fits
Goes in or on
Connects to
Also needed
You might also need
Questions
How many teeth should a ratchet have?
12 teeth (30° steps) are the largest and strongest; 24 or 36 give 15° or 10° steps.
How deep are the teeth?
3 mm, from R20 at the tips to R17 at the roots.
