RC servo sizes: 9 g micro (SG90, MG90S), standard (Futaba S3003, Hitec HS-311), 1/4 scale (HS-805BB)

What are the dimensions of a standard RC servo? · Modern device · basis: Servo datasheets and maker / retailer spec pages

Also called: sg90 dimensions, standard servo size, mg90s dimensions, servo cutout size, rc servo dimensions

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Micro 9 g: SG90 about 22.2 × 11.8 × 31; MG90S 22.8 × 12.2 × 28.5 (13.4 g).
  • Standard: Futaba S3003 40–41 × 20 × 36 (37 g); Hitec HS-311 39.9 × 19.8 × 36.3 (42.8 g), 24-tooth spline. Quarter scale: Hitec HS-805BB 66 × 30 × 57.6 (152 g).
  • Hitec HS-311 (Hitec RCD drawing, HS-311 announced specification, Apr 2002): body 40 × 20 × 36.5 mm, mounting-tab holes on 47.8 × 10.2 mm centres, 52.8 mm over the tabs, 26.5 mm from the case bottom to the underside of the tabs, output spline 24 segments Ø5.76. Tab hole diameter is not printed. For the other servos tab spacing and spline are not published as text: measure the tabs.
  • Body envelopes (free STEP/STL) are for pockets and cut-outs; add 0.3 mm a side.

RC servo sizes: 9 g micro (SG90, MG90S), standard (Futaba S3003… size chart

servoclasslength (mm)width (mm)height (mm)weight (g)spline
SG90micro 9 g22.211.831.09None
TowerPro MG90Smicro22.812.228.513.4None
Futaba S3003standard40–41203637None
Hitec HS-311standard39.919.836.342.824T
Hitec HS-805BB1/4 scale663057.6152heavy-duty

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

SG90 datasheet (TowerPro)SG90 micro servowebPublisher's page; dimensions are facts
GetFPV (TowerPro spec)MG90SwebPublisher's page; dimensions are facts
Futaba S3003 datasheetS3003 standard servowebPublisher's page; dimensions are facts
ServoDatabaseHitec HS-311webPublisher's page; dimensions are facts
SparkFun (Hitec spec)HS-805BB giant scalewebPublisher's page; dimensions are facts
Hitec RCDHS-311 specifications (40.0 × 20.0 × 36.5, 24T)webPublisher's page; dimensions are facts
Hitec RCD Korea (drawing, GitHub mirror)HS-311 announced specificationwebPublisher's page; dimensions are facts

Free files

★ Free files 5 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
servo-body-sg90-microServo body envelope 22.2 × 11.8 × 31.0 mm (tabs and output not modelled)STEP · STL
servo-body-mg90s-microServo body envelope 22.8 × 12.2 × 28.5 mm (tabs and output not modelled)STEP · STL
servo-body-standard-40x20x36Servo body envelope 40.0 × 20.0 × 36.0 mm (tabs and output not modelled)STEP · STL
servo-body-hs-311-standardServo body envelope 39.9 × 19.8 × 36.3 mm (tabs and output not modelled)STEP · STL
servo-body-quarter-scale-66x30x57.6Servo body envelope 66.0 × 30.0 × 57.6 mm (tabs and output not modelled)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rc-servos

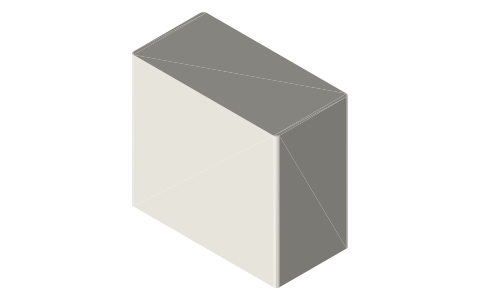

RC servo sizes: 9 g micro (SG90, MG90S), standard (Futaba S3003, Hitec HS-311), 1/4 scale (HS-805BB), isometric render of a generated part
Render of servo-body-standard-40x20x36 from the free STEP; not to scale.

Fits with

Questions

How big is an SG90 servo?

About 22.2 × 11.8 × 31 mm, 9 g.

How big is a standard servo?

About 40 × 20 × 36 mm (Futaba S3003, Hitec HS-311).
