Rhombic drive link, 30 mm centres

What link length does a small rhombic drive use? · Hardware · basis: Rhombic kinematics (tools/rhombic_geom.py): four equal links L = 30 between crank pins at e = 7 on gears 66 apart and yoke pivots at ±12.7

Also called: rhombic drive link length, rhombic link stl, 40 mm link 3 mm holes

Long Earth Society build part. The balanced beta drive for the 2 in tri-clamp engine; the rhombic frame head in the linkage fittings carries it on the spool. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • Four identical links join the two crank pins to the two yokes, forming the rhombus. Each is 30 mm between Ø3 holes (fit: run), 38 × 8 × 5 with round ends.
  • Two ride each crank pin: the lower link next to the gear, the upper link outside it.
  • Link length, gear centres, throw and yoke span together set the phase: here 90.0° with both strokes 20.12 mm.

Rhombic drive link, 30 mm centres size chart

parametervalue
centres30.0
outline38 × 8 × 5
holes2 × Ø3 (run)
quantity4

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
link endsØ3Ø3 pins (turn on them)runlink-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaRhombic drivewebCC BY-SA 4.0 (text)
WikipediaStirling enginewebCC BY-SA 4.0 (text)
Philips Research / MeijerThe Philips Stirling engine (rhombic drive papers, 1958–1965)webreference verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
link-30rhombic link 30 mm centres, 8 wide × 5, Ø3 pivot holes; four per driveSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rhombic-link

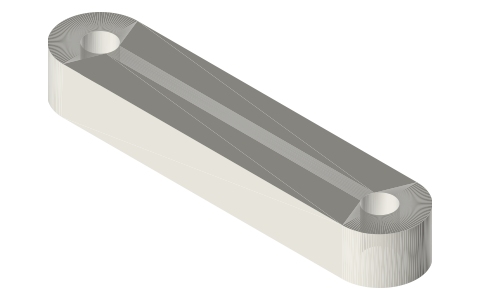

Rhombic drive link, 30 mm centres, isometric render of a generated part
Render of link-30 from the free STEP; not to scale.

Questions

How many links does a rhombic drive need?

Four equal links: two on each crank pin, one to the upper yoke and one to the lower.

What link length goes with this rhombic drive?

30 mm centres, with a 7 mm throw, gears 66 apart and yoke pivots at ±12.7.
