Base with a rocker pivot and shaft stand

What base holds a rocker pivot and a shaft? · Hardware · basis: My geometry: holes on the pivot posts' and crank stands' foot patterns, M3 nut pockets at the nuts' exact 5.5 AF

Also called: marble stirling engine base

Long Earth Society build part. Base of the marble engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • 438 × 100 × 8 (y −60..40). Two beam-pivot-post-60 at x 0, y ±10 (M3 × 12, nuts flush with the underside) and two crank-stand-80 at x 192.72, y −13.5 and −45.2 (M3 × 10, nuts 1 above the underside).

Base with a rocker pivot and shaft stand size chart

featurevalue
base438 × 100 × 8
pivot postsx 0, y ±10
crank standsx 192.72

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
screw holesØ3.4M3 clearancedesignedall
nut pockets5.5 AF hexISO 4032 M3 nutpressall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
marble-engine-basebase 438 × 100 × 8 (y −60..40): 4 × Ø3.4 for the two pivot posts and 4 for the two crank stands, each with an M3 nut pocket (5.5 AF) from the undersideSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rocker-pivot-base

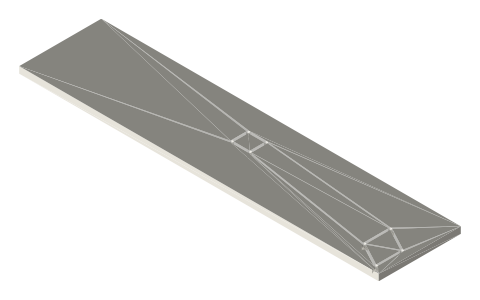

Base with a rocker pivot and shaft stand, isometric render of a generated part
Render of marble-engine-base from the free STEP; not to scale.

Fits with

Questions

How long is the marble engine?

The base is 438 mm: tube, stopper, transfer line, glass syringe and crank in one line.
