Rocking link 170 mm

What 170 mm rocking link joins a crank to a rocker? · Hardware · basis: My geometry: same section as the pin-end con-rods (8 × 5, Ø3 ends)

Also called: marble engine connecting rod

Long Earth Society build part. Rocking link of the marble engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • 170 mm between Ø3 holes; from the crank pin that leads the power pin by 90° to the rocker's lever pin. Length chosen so the rocker's mean angle is level.

Rocking link 170 mm size chart

featurevalue (mm)
centres170.0
section8 × 5
holesØ3

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
end holesØ3dowel-3x12 crank pin and lever pin (turn in them)runall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rocking-link-170rocking link, 170 mm centres, Ø3 holes, 8 wide × 5 thick: crank pin to the rocker's lever pinSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rocking-link-170

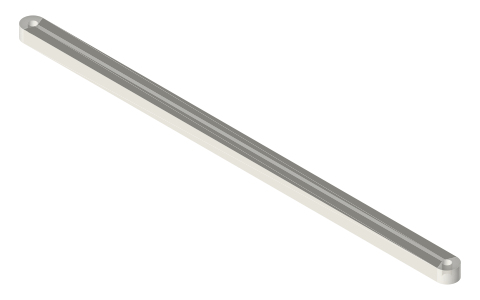

Rocking link 170 mm, isometric render of a generated part
Render of rocking-link-170 from the free STEP; not to scale.

Fits with

Questions

Why 170 mm?

It reaches from the crank to the rocker's lever pin 45 below the pivot, so the 7.5 mm crank throw rocks the tube -7.9° to +7.9°, and it sets the crank where the plunger never bottoms.
