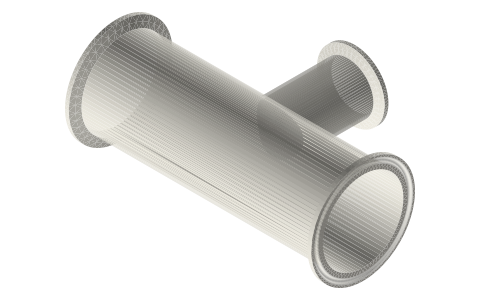

Sanitary clamp reducing tees (7RMP style), ¾ to 6 in run
What are the dimensions of a 2 × 1½ inch tri-clamp reducing tee? · Standard part · basis: Steel & O'Brien S7RMP: A run centre to face, B run face to face, C branch centre to face; ISO 2852 faces on BPE tube
Also called: tri clamp reducing tee, 2 x 1.5 tri clamp tee, 7rmp dimensions, sanitary reducing tee
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 19 in table
Notes
- Run of one size with a smaller branch: a port for a thermowell, valve or sample point without a reducer.
- Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.
Sanitary clamp reducing tees (7RMP style), ¾ to 6 in run size chart
| size (in) | run face to face (mm) | run c to f (mm) | branch c to f (mm) |
|---|---|---|---|
| ¾ × ½ | 127.0 | 63.5 | 63.5 |
| 1 × ½ | 133.3 | 66.7 | 66.7 |
| 1 × ¾ | 133.3 | 66.7 | 66.7 |
| 1½ × ½ | 146.0 | 73.0 | 73.0 |
| 1½ × 1 | 146.0 | 73.0 | 73.0 |
| 2 × ½ | 171.4 | 85.7 | 79.4 |
| 2 × ¾ | 171.4 | 85.7 | 79.4 |
| 2 × 1 | 171.4 | 85.7 | 79.4 |
| 2 × 1½ | 171.4 | 85.7 | 79.4 |
| 2½ × 1½ | 184.1 | 92.1 | 85.7 |
| 2½ × 2 | 184.1 | 92.1 | 85.7 |
| 3 × 1½ | 196.8 | 98.4 | 92.1 |
| 3 × 2 | 196.8 | 98.4 | 92.1 |
| 3 × 2½ | 196.8 | 98.4 | 92.1 |
| 4 × 1½ | 241.3 | 120.6 | 104.8 |
| 4 × 2 | 241.3 | 120.6 | 111.1 |
| 4 × 3 | 241.3 | 120.6 | 111.1 |
| 6 × 3 | 361.9 | 181.0 | 136.5 |
| 6 × 4 | 361.9 | 181.0 | 146.0 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| clamp face | 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 / 156.5 / 152.4 × 2.77; 8 in 217.7 / 207.0 / 203.2 × 2.77 | mating ISO 2852 clamp face, Type B gasket in the groove, two clamp halves (flange C3 / groove C2 / tube OD × wall, mm) | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Steel & O'Brien | S7RMP reducing tee, clamp ends: A, B, C per run × branch | web | publisher's table; dimensions cited |
| GW Kent | Tri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thickness | web | publisher's guide; dimensions cited |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 19 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| reducing-tee-0.75in-x-0.5in | ¾ × ½ in reducing tee: run 5.0 in face to face, branch 2.5 in centre to face | STEP · STL |
| reducing-tee-1in-x-0.5in | 1 × ½ in reducing tee: run 5.25 in face to face, branch 2.625 in centre to face | STEP · STL |
| reducing-tee-1in-x-0.75in | 1 × ¾ in reducing tee: run 5.25 in face to face, branch 2.625 in centre to face | STEP · STL |
| reducing-tee-1.5in-x-0.5in | 1½ × ½ in reducing tee: run 5.75 in face to face, branch 2.875 in centre to face | STEP · STL |
| reducing-tee-1.5in-x-1in | 1½ × 1 in reducing tee: run 5.75 in face to face, branch 2.875 in centre to face | STEP · STL |
| reducing-tee-2in-x-0.5in | 2 × ½ in reducing tee: run 6.75 in face to face, branch 3.125 in centre to face | STEP · STL |
| reducing-tee-2in-x-0.75in | 2 × ¾ in reducing tee: run 6.75 in face to face, branch 3.125 in centre to face | STEP · STL |
| reducing-tee-2in-x-1in | 2 × 1 in reducing tee: run 6.75 in face to face, branch 3.125 in centre to face | STEP · STL |
| reducing-tee-2in-x-1.5in | 2 × 1½ in reducing tee: run 6.75 in face to face, branch 3.125 in centre to face | STEP · STL |
| reducing-tee-2.5in-x-1.5in | 2½ × 1½ in reducing tee: run 7.25 in face to face, branch 3.375 in centre to face | STEP · STL |
| reducing-tee-2.5in-x-2in | 2½ × 2 in reducing tee: run 7.25 in face to face, branch 3.375 in centre to face | STEP · STL |
| reducing-tee-3in-x-1.5in | 3 × 1½ in reducing tee: run 7.75 in face to face, branch 3.625 in centre to face | STEP · STL |
| reducing-tee-3in-x-2in | 3 × 2 in reducing tee: run 7.75 in face to face, branch 3.625 in centre to face | STEP · STL |
| reducing-tee-3in-x-2.5in | 3 × 2½ in reducing tee: run 7.75 in face to face, branch 3.625 in centre to face | STEP · STL |
| reducing-tee-4in-x-1.5in | 4 × 1½ in reducing tee: run 9.5 in face to face, branch 4.125 in centre to face | STEP · STL |
| reducing-tee-4in-x-2in | 4 × 2 in reducing tee: run 9.5 in face to face, branch 4.375 in centre to face | STEP · STL |
| reducing-tee-4in-x-3in | 4 × 3 in reducing tee: run 9.5 in face to face, branch 4.375 in centre to face | STEP · STL |
| reducing-tee-6in-x-3in | 6 × 3 in reducing tee: run 14.25 in face to face, branch 5.375 in centre to face | STEP · STL |
| reducing-tee-6in-x-4in | 6 × 4 in reducing tee: run 14.25 in face to face, branch 5.75 in centre to face | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-reducing-tees

Fits with
Questions
How long is a 2 × 1½ in reducing tee?
6.750 in (171.5 mm) face to face; the 1½ in branch is 3.125 in (79.4 mm) from the run centreline.
