Scotch yoke: crank pin in a slotted crosshead on pillar guides
What motion does a Scotch yoke give? · Hardware · basis: Xem Studio design following Brown No. 331 (1868)
Also called: scotch yoke, slotted link mechanism, crank and slotted crosshead, simple harmonic motion mechanism, yugo escocés, Kreuzschleife (Schottisches Joch)
Exact dimensions. True size, with no tolerance added.
- sizes
- 4 in table
Notes
- Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: crank radius r, stroke; stays the same: motion; step to the nearest standard size (and redraw the hole or pocket it fits): guides.
- Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.

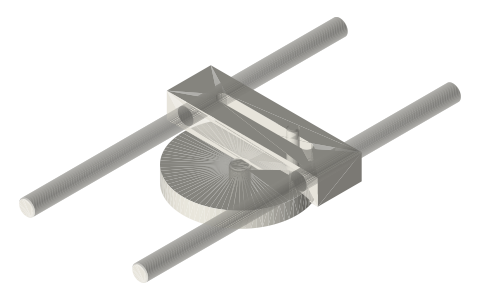

- A crank pin slides in a slot across a crosshead that can only move along two guide pillars: the crosshead position is exactly y = r·sin θ — pure simple harmonic motion, stroke 2r = 24 mm, with no connecting rod.
- Drawn at θ = 40° with the catalog Ø36 crank disc (pin at 12 mm), a Ø3 pin in the 3 mm slot (contact on both faces) and two Ø5 × 100 linear shafts as the guides.
- Brown's No. 331 (crank wrist in a slotted cross-head between pillar guides, as in Nos. 93 and 279).

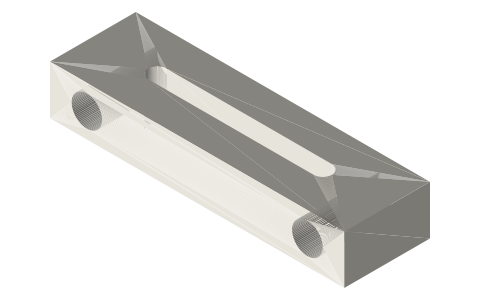

- Parts (each has its own page): crank-disc-36-pin-r12, scotch-yoke-crosshead-48x14-b5, linear-shafts-h6, dowel-pins-metric.
- Brown's movement No. 331 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.
Scotch yoke: crank pin in a slotted crosshead on pillar guides size chart
| parameter | value |
|---|---|
| crank radius r | 12 mm |
| stroke | 24 mm |
| motion | y = r sin θ (simple harmonic) |
| guides | 2 × Ø5 shafts, 36 mm apart |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Henry T. Brown (1868, public domain) | Five Hundred and Seven Mechanical Movements — scan on archive.org | web | Publisher's page; dimensions are facts |
| 507movements.com | Brown's movement No. 331: figure, his text and an animation | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| scotch-yoke-mechanism-assembly | Assembled mechanism, all parts placed at one pose (STEP keeps each part separate) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=scotch-yoke-mechanism

Fits with




Questions
What motion does a Scotch yoke give?
A crank pin slides in a slot across a crosshead that can only move along two guide pillars: the crosshead position is exactly y = r·sin θ — pure simple harmonic motion, stroke 2r = 24 mm, with no connecting rod.
How is a Scotch yoke different from a slider-crank?
There is no connecting rod: the pin drives the slot directly, so the motion is an exact sine, not the rod-ratio-distorted motion of a slider-crank.
