One tooth turning a notched wheel one notch per turn, locked between (Geneva principle)

How does a single tooth give a locked, step-by-step motion? · Hardware · basis: Xem Studio design following Brown No. 68 (1868)

Also called: intermittent gear, geneva drive, one tooth gear, maltese cross, rueda intermitente de un diente (ginebra), Malteserkreuzgetriebe (Ein-Zahn-Schaltwerk)

Exact dimensions. True size, with no tolerance added.

sizes
5 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: wheel, centres; stays the same: motion / dwell; step to the nearest standard size (and redraw the hole or pocket it fits): pin radius.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A driver with a single tooth (here a round pin) turns a wheel with notches: once per turn the tooth enters a notch and moves the wheel one division; for the rest of the turn the driver's plain rim sits in a concave arc of the wheel and locks it.
  • Drawn with the catalog 6-station Geneva pair (R30 wheel, pin at R17.32, centres 34.64 mm = R / cos 30°): the pin is at the bottom of a slot at mid-index. The wheel moves 60° in 120° of driver rotation and stands locked for 240°.
  • Brown's No. 68 (one tooth driving a notched wheel one notch per revolution, the blank part of the driver's rim locking it). Brown's Geneva stop (No. 212) is the watch-winding form.
  • Parts (each has its own page): geneva-drive, dowel-pins-metric.
  • Brown's movement No. 68 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

One tooth turning a notched wheel one notch per turn, locked between size chart

parametervalue
stations6
wheelR30, 5 mm slots
pin radius17.32 mm
centres34.64 mm
motion / dwell120° / 240° of driver turn

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 68: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
single-tooth-intermittent-wheel-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=single-tooth-intermittent-wheel-mechanism

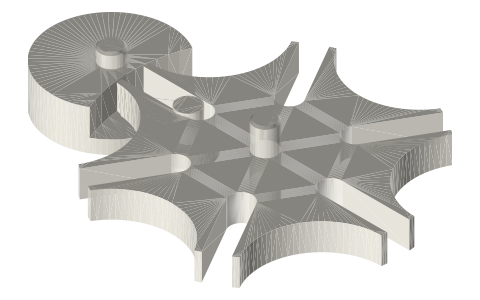

One tooth turning a notched wheel one notch per turn, locked between (Geneva principle), isometric render of a generated part
Render of single-tooth-intermittent-wheel-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a single tooth give a locked, step-by-step motion?

A driver with a single tooth (here a round pin) turns a wheel with notches: once per turn the tooth enters a notch and moves the wheel one division; for the rest of the turn the driver's plain rim sits in a concave arc of the wheel and locks it.
