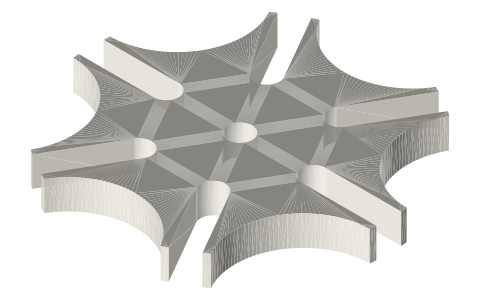

Geneva drive: 4 and 6 station wheels, R30, with drive discs
How do I make a Geneva drive? · Hardware · basis: Geneva geometry: centre distance c = R / cos(π/n), drive pin radius R·tan(π/n); Ø5 pin, Ø5 shafts
Also called: geneva mechanism stl, geneva drive 3d print, maltese cross mechanism, indexing mechanism, cruz de Malta mecanismo, Malteserkreuzgetriebe, croix de Malte mécanisme
Long Earth Society build part. Indexing drive, shelf part for LES rigs. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 2 in table
Notes
- Turns continuous rotation into steps: the wheel indexes 360/n degrees once per turn of the drive, then is held by the drive's locking disc until the next index.
- Wheels are R30 × 6 with 5 mm slots for the Ø5 drive pin. The drive is a 3 mm base plate carrying the locking disc and the pin; the wheel runs in the plane of the disc and pin, 3 mm above the base.
- The locking arcs on the wheel are 0.3 mm larger than the locking disc: a designed gap, keep it.
- Checked over a full turn of the drive for both wheels: pin, disc and wheel never overlap.
Geneva drive: 4 and 6 station wheels, R30, with drive discs size chart
| stations | index angle | centre distance | drive pin radius | locking disc radius |
|---|---|---|---|---|
| 4 | 90° | 42.4 mm | 30.0 mm | 26.0 mm |
| 6 | 60° | 34.6 mm | 17.3 mm | 13.3 mm |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| wheel and drive bores | Ø5 | Ø5 shafts | press | all |
| wheel slots | 5 | Ø5 drive pin (slides in them) | slide | geneva-* |
| locking arc gap | 0.3 | drive disc | designed | geneva-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Wikipedia | Geneva drive | web | CC BY-SA 4.0 (text) |
| Long Earth Society | Engine and rig builds on extrusion frames | web, video | LES site |
Free files
★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| geneva-4-wheel-r30 | Geneva wheel, 4 stations, R30, 5 mm slots, Ø5 bore | STEP · STL |
| geneva-4-drive-r30 | Geneva drive for the 4-station wheel: 3 mm base with arm, R26.0 locking disc and Ø5 pin at R30.0 in the wheel's plane, Ø5 bore (centre distance 42.4 mm) | STEP · STL |
| geneva-6-wheel-r30 | Geneva wheel, 6 stations, R30, 5 mm slots, Ø5 bore | STEP · STL |
| geneva-6-drive-r30 | Geneva drive for the 6-station wheel: 3 mm base with arm, R13.3 locking disc and Ø5 pin at R17.3 in the wheel's plane, Ø5 bore (centre distance 34.6 mm) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=geneva-drive

How it fits
Goes in or on
Alternatives
Also needed
You might also need
Questions
What centre distance does a Geneva mechanism need?
C = R / cos(π/n): for a 6-station wheel of R30, 34.6 mm; the drive pin sits at R·tan(π/n) = 17.3 mm from the drive centre.
How long does the wheel stay still?
For n stations it moves during (180 − 360/n)° of each drive turn: 90° of 360 for 4 stations, 120° for 6.
