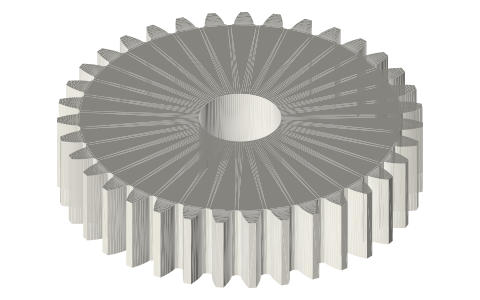

Spur gears, module 3: 10 to 80 teeth (20° involute)
What is the pitch diameter of a module 3 spur gear? · Hardware · basis: ISO 53 basic rack: 20° pressure angle, addendum m, dedendum 1.25 m; pitch Ø = m × teeth, tip Ø = m × (teeth + 2), root Ø = m × (teeth − 2.5)
Also called: module 3 spur gear stl, m3 gear dimensions, spur gear calculator pitch diameter, involute gear step file, 3d printable gear
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 26 in table
Notes
- Centre distance of two module 3 gears = m × (N1 + N2) / 2. Face width 24 mm, plain bore (add a hub, key or set screw to suit). Teeth below 17 are drawn without profile shift, so they undercut as real unshifted gears do.
Spur gears, module 3: 10 to 80 teeth size chart
| teeth | pitch dia (mm) | tip dia (mm) | root dia (mm) | face (mm) | bore (mm) |
|---|---|---|---|---|---|
| 10 | 30.0 | 36.0 | 22.5 | 24.0 | 8 |
| 12 | 36.0 | 42.0 | 28.5 | 24.0 | 10 |
| 14 | 42.0 | 48.0 | 34.5 | 24.0 | 12 |
| 15 | 45.0 | 51.0 | 37.5 | 24.0 | 13 |
| 16 | 48.0 | 54.0 | 40.5 | 24.0 | 14 |
| 18 | 54.0 | 60.0 | 46.5 | 24.0 | 16 |
| 20 | 60.0 | 66.0 | 52.5 | 24.0 | 18 |
| 22 | 66.0 | 72.0 | 58.5 | 24.0 | 20 |
| 24 | 72.0 | 78.0 | 64.5 | 24.0 | 23 |
| 25 | 75.0 | 81.0 | 67.5 | 24.0 | 24 |
| 28 | 84.0 | 90.0 | 76.5 | 24.0 | 25 |
| 30 | 90.0 | 96.0 | 82.5 | 24.0 | 25 |
| 32 | 96.0 | 102.0 | 88.5 | 24.0 | 25 |
| 35 | 105.0 | 111.0 | 97.5 | 24.0 | 25 |
| 36 | 108.0 | 114.0 | 100.5 | 24.0 | 25 |
| 40 | 120.0 | 126.0 | 112.5 | 24.0 | 25 |
| 42 | 126.0 | 132.0 | 118.5 | 24.0 | 25 |
| 45 | 135.0 | 141.0 | 127.5 | 24.0 | 25 |
| 48 | 144.0 | 150.0 | 136.5 | 24.0 | 25 |
| 50 | 150.0 | 156.0 | 142.5 | 24.0 | 25 |
| 56 | 168.0 | 174.0 | 160.5 | 24.0 | 25 |
| 60 | 180.0 | 186.0 | 172.5 | 24.0 | 25 |
| 64 | 192.0 | 198.0 | 184.5 | 24.0 | 25 |
| 70 | 210.0 | 216.0 | 202.5 | 24.0 | 25 |
| 72 | 216.0 | 222.0 | 208.5 | 24.0 | 25 |
| 80 | 240.0 | 246.0 | 232.5 | 24.0 | 25 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| tooth form | 20° pressure angle, addendum 3, dedendum 3.75; pitch Ø = 3 × teeth (ISO 53 basic rack) | mating gear of the same module 3; centre distance = 3 × (N1 + N2) / 2 | designed | all |
| bore | Ø8 (10 teeth) to Ø25 (80 teeth), plain, per the table | shaft of the same Ø; add a hub, key or set screw to suit | slide | all |
| face width | 24 | shoulder or spacer on each face; keep the pair axially aligned | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ISO | ISO 53 standard basic rack (20° pressure angle, addendum 1 m, dedendum 1.25 m) and ISO 54 modules | standard | ISO; dimensions are facts verify |
Free files
★ Free files 26 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| gear-m3-10t | module 3, 10 teeth: pitch Ø30, tip Ø36, root Ø22.5, face 24, bore Ø8 | STEP · STL |
| gear-m3-12t | module 3, 12 teeth: pitch Ø36, tip Ø42, root Ø28.5, face 24, bore Ø10 | STEP · STL |
| gear-m3-14t | module 3, 14 teeth: pitch Ø42, tip Ø48, root Ø34.5, face 24, bore Ø12 | STEP · STL |
| gear-m3-15t | module 3, 15 teeth: pitch Ø45, tip Ø51, root Ø37.5, face 24, bore Ø13 | STEP · STL |
| gear-m3-16t | module 3, 16 teeth: pitch Ø48, tip Ø54, root Ø40.5, face 24, bore Ø14 | STEP · STL |
| gear-m3-18t | module 3, 18 teeth: pitch Ø54, tip Ø60, root Ø46.5, face 24, bore Ø16 | STEP · STL |
| gear-m3-20t | module 3, 20 teeth: pitch Ø60, tip Ø66, root Ø52.5, face 24, bore Ø18 | STEP · STL |
| gear-m3-22t | module 3, 22 teeth: pitch Ø66, tip Ø72, root Ø58.5, face 24, bore Ø20 | STEP · STL |
| gear-m3-24t | module 3, 24 teeth: pitch Ø72, tip Ø78, root Ø64.5, face 24, bore Ø23 | STEP · STL |
| gear-m3-25t | module 3, 25 teeth: pitch Ø75, tip Ø81, root Ø67.5, face 24, bore Ø24 | STEP · STL |
| gear-m3-28t | module 3, 28 teeth: pitch Ø84, tip Ø90, root Ø76.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-30t | module 3, 30 teeth: pitch Ø90, tip Ø96, root Ø82.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-32t | module 3, 32 teeth: pitch Ø96, tip Ø102, root Ø88.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-35t | module 3, 35 teeth: pitch Ø105, tip Ø111, root Ø97.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-36t | module 3, 36 teeth: pitch Ø108, tip Ø114, root Ø100.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-40t | module 3, 40 teeth: pitch Ø120, tip Ø126, root Ø112.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-42t | module 3, 42 teeth: pitch Ø126, tip Ø132, root Ø118.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-45t | module 3, 45 teeth: pitch Ø135, tip Ø141, root Ø127.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-48t | module 3, 48 teeth: pitch Ø144, tip Ø150, root Ø136.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-50t | module 3, 50 teeth: pitch Ø150, tip Ø156, root Ø142.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-56t | module 3, 56 teeth: pitch Ø168, tip Ø174, root Ø160.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-60t | module 3, 60 teeth: pitch Ø180, tip Ø186, root Ø172.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-64t | module 3, 64 teeth: pitch Ø192, tip Ø198, root Ø184.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-70t | module 3, 70 teeth: pitch Ø210, tip Ø216, root Ø202.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-72t | module 3, 72 teeth: pitch Ø216, tip Ø222, root Ø208.5, face 24, bore Ø25 | STEP · STL |
| gear-m3-80t | module 3, 80 teeth: pitch Ø240, tip Ø246, root Ø232.5, face 24, bore Ø25 | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=spur-gears-module-3

Fits with







Questions
Pitch diameter of a module 3, 20-tooth gear?
60 mm; tip 66 mm.
Centre distance?
m × (N1 + N2) / 2: a 20 and a 40 tooth module 3 pair sit 90 mm apart.
