Cams lifting a stamp that drops by its own weight

How are stamps lifted and dropped? · Hardware · basis: Xem Studio design following Brown No. 85 (1868)

Also called: stamp mill, cam stamp, drop stamp, gravity stamp, pisón accionado por levas, Pochwerk (Daumenstempel)

Exact dimensions. True size, with no tolerance added.

sizes
3 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: cam.
  • Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • A cam on a turning shaft catches the tappet on a vertical stamp, lifts it, and lets it slip off the lobe's tip so the stamp falls by its own weight onto the work — the ore stamp and the drop hammer.

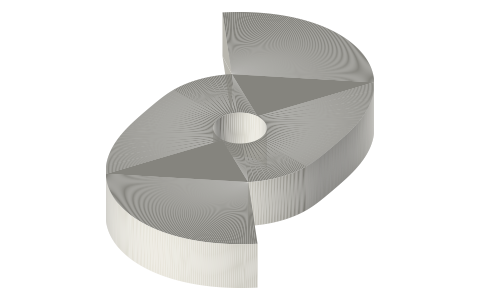

  • Two lobes rising R14 → R30 over 140°: 16 mm lift, two blows per turn. The stamp's stem runs in two guide blocks 40 mm to the side of the cam shaft; drawn with the cam at 60° and the tappet resting on it.
  • Brown's No. 85 (cams on a rotating shaft lifting rods that drop by gravity: stamps and hammers).

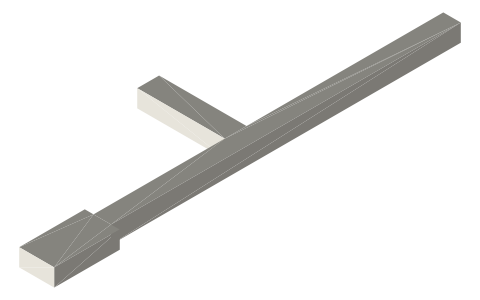

  • Parts (each has its own page): stamp-cam-2-lobe-r14-r30-bore8, stamp-stem-8x8-160-tappet-head, stamp-guide-block-16x16-sq8, linear-shafts-h6.
  • Brown's movement No. 85 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Cams lifting a stamp that drops by its own weight size chart

parametervalue
cam2 lobes, 16 mm lift
blows per turn2
stamp8 × 8 stem, 160 long

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 85: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
stamp-cam-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=stamp-cam-mechanism

Cams lifting a stamp that drops by its own weight, isometric render of a generated part
Render of stamp-cam-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How are stamps lifted and dropped?

A cam on a turning shaft catches the tappet on a vertical stamp, lifts it, and lets it slip off the lobe's tip so the stamp falls by its own weight onto the work — the ore stamp and the drop hammer.
