90° V block for two 10 mL syringes

What block holds two syringes at 90 degrees? · Hardware · basis: Two sockets at the 10 mL barrel OD Ø15.9, axes at ±45°

Also called: syringe v block, 90 degree syringe holder, v twin syringe block

Long Earth Society build part. Alpha demonstrator and the twin-crank for the two-spool alpha. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • A 70 × 24 × 40 block with two Ø15.9 sockets (fit: socket) for 10 mL syringe barrels, their axes at ±45° (90° between them).
  • The axes meet 4 mm below the block's base, too close for a crank under it: it is a layout piece for showing the V. The running V-twin is the alpha V-twin frame.

90° V block for two 10 mL syringes size chart

parametervalue
block70 × 24 × 40
sockets2 × Ø15.9
angle between axes90°
axes meet4 below the base

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
V-block socketsØ15.910 mL syringe barrelsocketv-block-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaStirling enginewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
v-block-90-2x-syringe-10mlfor a running V-twin use the alpha V-twin frame)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=syringe-v-block-90

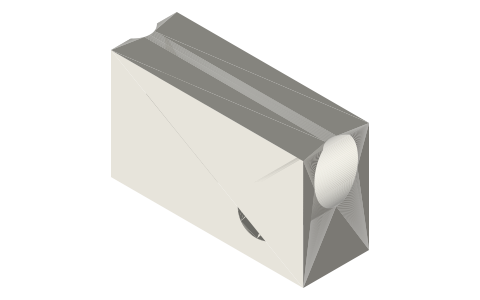

90° V block for two 10 mL syringes, isometric render of a generated part
Render of v-block-90-2x-syringe-10ml from the free STEP; not to scale.

You might also need

Questions

Can the V block run as an engine?

No: its axes meet 4 mm below the base, with no room for a crank. Use the alpha V-twin frame.

What fits the V block sockets?

10 mL syringe barrels, Ø15.9 outside.
