Threaded rod, metric: M4 × 194.2

What lengths of metric threaded rod are drawn exact? · Hardware · basis: ISO metric M4; thread drawn as the plain major diameter, this site's convention

Also called: m4 threaded rod length, flexure rod free piston

Long Earth Society build part. The flexure rods of my generator pistons. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • M4 threaded rod cut to 195.9: from the mover crown's tapped hole down through both flexure stacks to 1 mm below the last hub nut.

Threaded rod, metric: M4 × 194.2 size chart

threadlength (mm)
M4195.9

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
threadM4 (drawn Ø4)mover crown tap drill, hub nutsdesignedall
rod through the hubsØ4flexure hub Ø4, hub washer Ø4slideall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem Studiotools/gen_ta_power.py: the network model and every dimension on this pagecodeCC BY 4.0
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rod-m4x195.9M4 threaded rod × 195.9, thread as a plain Ø4 cylinderSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=threaded-rods-metric

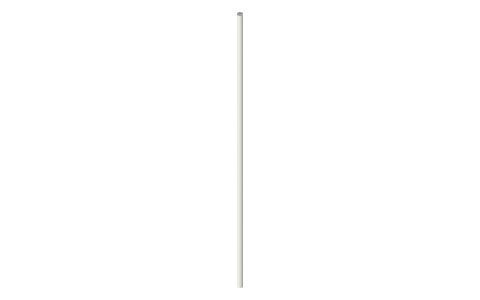

Threaded rod, metric: M4 × 194.2, isometric render of a generated part
Render of rod-m4x195.9 from the free STEP; not to scale.

Fits with

Questions

Why threaded?

The leaf hubs are clamped between nuts anywhere along it; no shoulders to machine.
