Traxxas 3229 screws, M2.5 × 10 mm
What size are Traxxas 3229 screws? · Modern device · basis: Maker's parts list (Traxxas)
Also called: Traxxas 3229, traxxas 3229, Traxxas part 3229, 3229 screws, 2.5x10mm cap-head machine (hex drive), Traxxas 3229 size, Traxxas 3229 dimensions, Traxxas 3229 replacement, repuesto Traxxas 3229, Traxxas 3229 Ersatzteil
Exact dimensions. True size, with no tolerance added.
- length
- 4.5 mm
- width
- 4.5 mm
- height
- 12.5 mm
Notes
- Traxxas part 3229: Screws, 2.5x10mm cap-head machine (hex drive) (6). Size exactly as printed in Traxxas's parts list; the file is built from that size only.

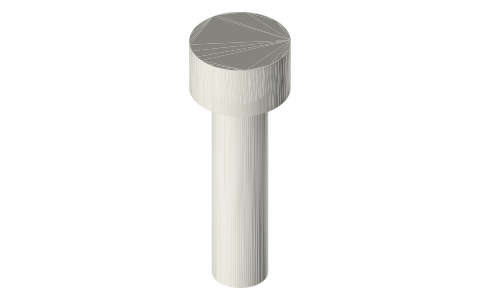

- M2.5 × 10 mm, shank as a plain Ø2.5 cylinder, ISO 4762 cap head Ø4.5 × 2.5 mm.
- True size, no printing tolerance added.
- Traxxas prints the thread and length; the head is drawn to the ISO 4762 cap head standard (from the catalog's screw page) because the maker gives no head size.
Traxxas 3229 screws, M2.5 × 10 mm size chart
| dimension | value |
|---|---|
| part number | Traxxas 3229 |
| name (as printed) | Screws, 2.5x10mm cap-head machine (hex drive) (6) |
| size (as printed) | 2.5x10mm cap-head machine (hex drive) |
| thread | M2.5 |
| length | 10 mm |
| head (drawn) | ISO 4762 cap head: Ø4.5 × 2.5 mm — head size not printed by Traxxas |
| used in | Traxxas Rustler 2WD XL-5 (1/10 stadium truck, 37054), Traxxas TRX-4 2021 Ford Bronco (1/10 crawler, 92076-4) |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Traxxas (sheet hosted by Monsterhopups) | TRX-4 Unassembled Kit (Model 82016-4) parts list, REV. 230615 0246, p. 2 | web | Publisher's page; dimensions are facts |
Free files
★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| traxxas-3229-screws-2-5x10mm-cap-head-machine-hex-drive-envelope | M2.5 × 10 mm, shank as a plain Ø2.5 cylinder, ISO 4762 cap head Ø4.5 × 2.5 mm | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=traxxas-3229-screws-2-5x10mm-cap-head-machine-hex-drive

Fits with





Questions
What size are Traxxas 3229 screws?
M2.5 × 10 mm
