Tri-clamp bearing cap: 2 in cap with a long Ø3 shaft bore and two 623 seats

How do I bring a crankshaft out of a sealed tri-clamp crankcase? · Hardware · basis: ISO 2852 clamp face and 20° back exactly as the flat end cap on this site (gen_hardware.tc_cap); 623 bearing 3 × 10 × 4 (ISO 15); bore length and spigot are design values

Also called: tri clamp bearing cap, crankshaft through tri clamp cap, sealed crankcase shaft, clearance seal crankshaft, stirling crankcase cap

Long Earth Society build part. The cap my cross gamma's crankshaft leaves through. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • A cap for a 2 in ferrule face that lets a thin crankshaft out of a crankcase that holds working gas. The face (flat, with the gasket groove) and the 20° back cone are the flat end cap's, so the standard clamp and Type B gasket close it like any cap.
  • On the gas side a Ø16 spigot runs 77.1 mm in from the face: through the gasket lip and through the Ø16 bore of the branch plug to the crank chamber. A 623 seat (Ø10 × 4) at the spigot end carries the shaft next to the crank; a second 623 seat in the back carries it next to the flywheel.
  • Between the two seats the shaft runs in a Ø3 bore 75.1 mm long. That close running fit is the only way out for the gas: no seal, no O-ring, so almost no friction.
  • Fits: Ø3 bore run on the Ø3 shaft; seats press on the 623 outer ring; spigot slide in the plug bore; the face is a clamp face.

Tri-clamp bearing cap: 2 in cap with a long Ø3 shaft bore and two… size chart

featurevalue
faceISO 2852, 2 in (Ø64 flange)
flat backØ46.7 at 6
spigotØ16 × 77.1 from the face
bearing seats2 × Ø10 × 4 (623)
shaft boreØ3 × 75.1 (run)

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
cap faceISO 2852 (flat, gasket groove on Ø56.5 (1.6 deep, R1.2 bottom, 23° walls), rim 2.85, 20° back to the flat back)standard clamp + Type B gasketclampbearing-cap-*
shaft boreØ3 × 75.1 between the seatsØ3 crankshaft (shaft-3x100): the clearance seal, the only leak pathrunbearing-cap-*
bearing seats2 × Ø10 × 4 (back and spigot end)623 outer ringpressbearing-cap-*
spigotØ16 × 77.1 from the faceØ16 bore of branch-plug-2in-bore16slidebearing-cap-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
bearing-cap-2in-b32 in bearing cap: ISO 2852 face (flat, gasket groove on Ø56.5, rim 2.85), 20° back to the 6 mm flat back (Ø46.7) as the flat end cap; Ø16 spigot 77.1 from the face; 623 seats Ø10 × 4 in the back and at the spigot end; Ø3 bore 75.1 long between themSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-bearing-cap

Tri-clamp bearing cap: 2 in cap with a long Ø3 shaft bore and two 623 seats, isometric render of a generated part
Render of bearing-cap-2in-b3 from the free STEP; not to scale.

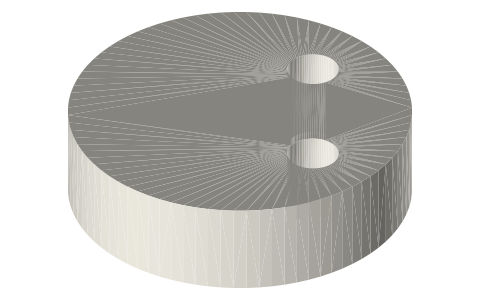

Fits with

Questions

How does the shaft get out without a seal?

Through a Ø3 bore 75.1 mm long between two 623 seats: a long close running fit leaks very little and adds almost no friction.

Does it fit a standard clamp and gasket?

Yes: the face and back are the flat end cap's ISO 2852 profile.
