2 in tri-clamp cross branch plugs

What plug fills the side branches of a 2 inch tri-clamp cross? · Hardware · basis: ASME BPE 2 in bore Ø47.5; ISO 2852 Type B lip Ø45.3 and the cap's flat face; the saddle is the Ø47.5 run bore

Also called: tri clamp cross plug, cross branch filler, stirling dead volume plug

Long Earth Society build part. The plugs in my cross gamma's side branches. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • A branch plug fills a 2 in cross branch from the crank chamber to the cap: Ø47.5 up to the gasket lip, then Ø45.3 through the lip to the cap's flat face, so no gas is left in the joint.
  • Its inner end is cut by the Ø47.5 run, so it meets the crankcase insert face to face, and a Ø29 nose runs on into the insert's crank chamber up to the crank. The blind plug goes on the end-cap side; the bored one (Ø16) takes the bearing cap's spigot.
  • Fits: Ø47.5 slide in the bore; Ø45.3 touches the lip; the Ø16 bore is a slide fit on the spigot.

2 in tri-clamp cross branch plugs size chart

filenose end (mm)bore
branch-plug-2in-blind15.5none
branch-plug-2in-bore1613.5Ø16

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
outsideØ47.52 in cross branch boreslideall
lip spigotØ45.3 to the cap's flat faceType B gasket lip (ID 45.3) and the capslideall
saddleØ47.5 cylinder across the plugcrankcase insert outsidedesignedall
noseØ29crank chamber of the insertslideall
spigot boreØ16bearing-cap spigotslidebranch-plug-2in-bore16*
hub pocketsØ22 × 4 and Ø12 × 10hub web and hub turning in themdesignedbranch-plug-2in-bore16*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
branch-plug-2in-blind2 in cross branch plug: Ø47.5 from the saddle to 88.35, Ø45.3 to 90.60 (from the cross centre), Ø29 nose to 15.5; end-cap sideSTEP · STL
branch-plug-2in-bore162 in cross branch plug as the blind one with the nose to 13.5 and a Ø16 bore for the bearing cap's spigotSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cross-branch-plug

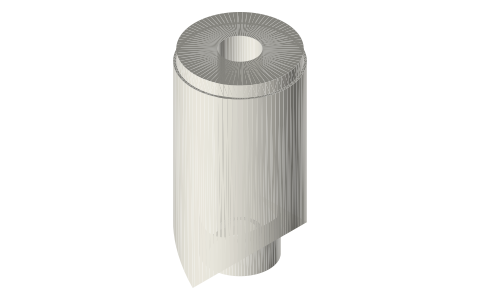

2 in tri-clamp cross branch plugs, isometric render of a generated part
Render of branch-plug-2in-bore16 from the free STEP; not to scale.

Fits with

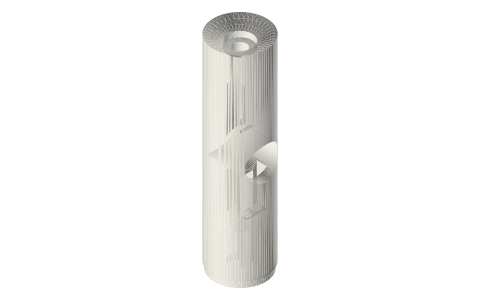

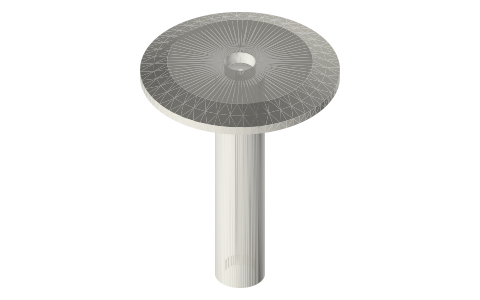

Questions

Why the saddle end?

The insert in the run is a Ø47.5 cylinder; a flat end would leave about 6 mL of gas between them on each side.
