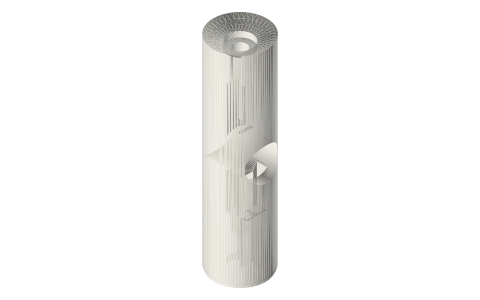

2 in tri-clamp cross insert with a rod guide and shaft chamber
What insert turns a 2 inch tri-clamp cross into a sealed shaft housing? · Hardware · basis: ASME BPE 2 in bore Ø47.5; ISO 2852 Type B lip (Ø45.3, 1.4 from the joint plane, T2 2.8 long); slot, chamber and gap sizes are design values from the crank and con-rods
Also called: tri clamp cross insert, displacer rod guide tri clamp, crankcase filler stirling, reduce dead volume cross
Long Earth Society build part. The insert that turns the cross into my crankcase. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 6 in table
Notes
- One piece that fills the run of a 2 in cross with the working gas still free to move. It drops in from the top, stands on the lower gasket's lip and passes the lip with a Ø45.3 spigot that ends level with the lip's lower face.
- Lower run: a Ø3 bore 30.15 mm long is the displacer-rod guide (running fit). Above it a column for the displacer's rod clevis and a slab for its con-rod; two Ø8 passages carry the gas from under the insert to the crank chamber; a Ø18 pocket at the bottom takes the displacer cap's boss at the top of its stroke.
- Middle: a Ø29 chamber straight through along the branch axis; the two branch plugs' noses fill its ends up to the crank. Upper run: slab and column for the diaphragm con-rod and clevis, a Ø22 pocket for the centre disc and nuts, and a cone that stays 1 mm under the membrane at full inward travel.
- Fits: Ø47.5 slide in the bore; spigot touches the lip's Ø45.3; Ø3 guide run on the rod. Chamber, slots and the gap under the membrane are designed.
2 in tri-clamp cross insert with a rod guide and shaft chamber size chart
| feature | value |
|---|---|
| outside | Ø47.5, -88.35 to 88.25 from the cross centre |
| spigot | Ø45.3 to -91.15 |
| guide | Ø3 × 30.15 |
| crank chamber | Ø29 along X |
| gas passages | 2 × Ø8 |
| gap under the membrane | 1 at ±6 travel |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| outside | Ø47.5 | 2 in cross run bore | slide | all |
| spigot | Ø45.3 | Type B gasket lip (ID 45.3) | slide | all |
| displacer-rod guide | Ø3 × 31.55 | Ø3 displacer rod (crankshaft-3x60): runs in it | run | all |
| crank chamber | Ø29 along the branch axis | branch-plug noses; crank sweep R 13 | designed | all |
| con-rod slabs and clevis columns | 7 × 18 and 9 × 18 slabs, 13 × 11 boxes, Ø12 round columns | con-rods and rod clevises in motion | designed | all |
| membrane cone | 1.0 under the membrane at ±6 travel; Ø22 disc pocket | centre disc, nuts and boss at full inward travel | designed | all |
| gas passages | 2 × Ø8 | gas path from the displacer to the crank chamber | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ISO (via iTeh sample) | ISO 2852 clamp liners: face profile and flange / groove diameters | standard excerpt; dimensions are facts | |
| ASME | BPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall) | standard | ASME; dimensions are facts verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| crankcase-insert-2in | 2 in cross crankcase insert: Ø47.5 from the lower lip (-88.35) to the rim (88.25), Ø45.3 spigot to -91.15 (from the cross centre); Ø29 crank chamber along the branches; Ø3 guide 30.15 long; two Ø8 gas passages; membrane cone 1 under full inward travel | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cross-shaft-housing-insert

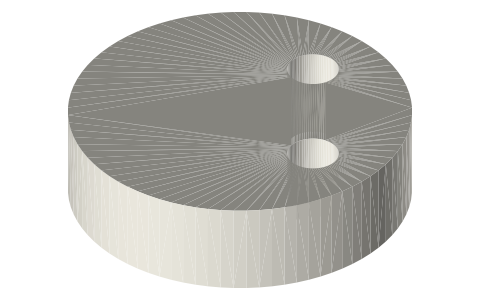

Fits with
Questions
Why fill the cross?
The open 2 in cross holds about 0.55 L of gas; the engine sweeps about 11 mL. Every bit of unswept gas lowers the pressure swing.
Where does the gas go?
Up past the displacer, through the two Ø8 passages and the slots into the crank chamber, and up the diaphragm slot to the membrane.
