2 in tri-clamp volume fillers: tee-run plugs and annular sleeves
How do I fill dead volume inside a 2 inch tri-clamp tee? · Hardware · basis: ASME BPE 2 in bore (Ø47.5); ISO 2852 Type B lip reach (1.4 from the joint plane, 0.55 past the face); passage and gap sizes are design values
Also called: stirling dead volume, reduce dead volume stirling, tri clamp filler plug, stirling volume filler, annular gap heater
Long Earth Society build part. The plugs I use to take the dead volume out of my 2 in diaphragm engines. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 4 in table
Notes
- Every cubic centimetre of gas that is not swept and not in a heat exchanger lowers the pressure swing. These plugs fill the parts of the fittings where the gas does no work and leave a defined path through them.
- Tee-run plugs fill the 177.8 mm run of a 2 in tee between the two gasket lips. The blind plug (176.7 long) has a Ø16 passage from one end to the centre and out to the branch; the half beyond the branch is solid, so a capped run end holds no gas. The rod plug has a Ø12 passage end to end so a Ø3 displacer rod passes through it.
- Annular sleeves fill a spool with a 1.0 mm gas gap along the tube wall: the core is Ø45.5, three 3 mm ribs touch the bore. On the hot leg the gap is the heater; on the cold leg the cooler.
- All outer diameters are the bore, Ø47.5: a slide fit (Mating features). The gaps and passages are designed.

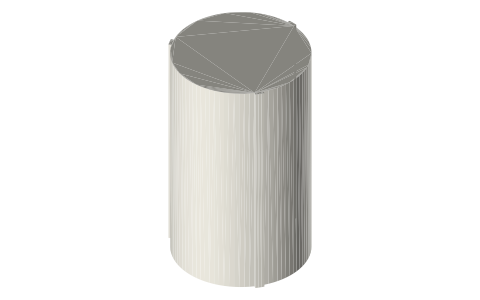

2 in tri-clamp volume fillers: tee-run plugs and annular sleeves size chart
| file | od (mm) | length (mm) | passage |
|---|---|---|---|
| plug-tee-2in-blind | 47.5 | 176.7 | Ø16 axial to centre + Ø16 radial |
| plug-tee-2in-rod-106.35 | 47.5 | 106.35 | Ø12 axial through + Ø16 radial |
| sleeve-2in-76.2 | 47.5 | 76.2 | 1.0 annular gap |
| sleeve-2in-32 | 47.5 | 32.0 | 1.0 annular gap |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| plug OD | Ø47.5 | 2 in tube bore | slide | plug-* |
| sleeve rib tips | Ø47.5 | 2 in tube bore | slide | sleeve-* |
| rod passage | Ø12 | Ø3 displacer rod (no contact) | designed | plug-tee-2in-rod-* |
| flow passages | Ø16 | gas path to the branch | designed | plug-* |
| annular gap | 1.0 | gas gap along the tube wall | designed | sleeve-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ISO (via iTeh sample) | ISO 2852 clamp liners: face profile and flange / groove diameters | standard excerpt; dimensions are facts | |
| ASME | BPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall) | standard | ASME; dimensions are facts verify |
| Long Earth Society | Engine builds | web, video | LES site |
Free files
★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| plug-tee-2in-blind | 2 in tee-run plug Ø47.5 × 176.7: Ø16 passage from one end to the centre, then Ø16 out to the branch; the other half solid | STEP · STL |
| plug-tee-2in-rod-106.35 | 2 in tee-run plug Ø47.5 × 106.35: Ø12 passage end to end for the displacer rod and the gas, Ø16 out to the branch at 18.00 from the bottom | STEP · STL |
| sleeve-2in-76.2 | 2 in annular sleeve Ø45.5 × 76.2 with three 3 mm ribs to Ø47.5: 1.0 mm gas gap along the tube wall (hot spool) | STEP · STL |
| sleeve-2in-32 | 2 in annular sleeve Ø45.5 × 32 with three ribs to Ø47.5: 1.0 mm gas gap (cold spool, above the regenerator) | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-volume-filler

Fits with
Questions
Why fill the tee run?
A 2 in tee run is 315 mL of gas; with the plug only the Ø16 passage and the gaps remain.
Won't a sleeve block the flow?
The 1.0 mm gap all round is 146 mm² of flow area, the same order as the Ø16 passage (201 mm²), and it puts the gas against the heated or cooled wall.
