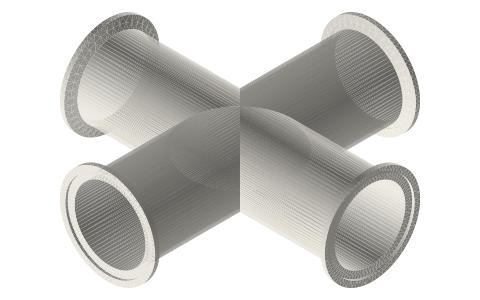

Sanitary clamp crosses (9MP): ½ to 4 in
What are the dimensions of a 2 inch tri-clamp cross? · Standard part · basis: ASME BPE / 3-A clamp-fitting dimensions published identically by Dixon and Steel & O'Brien; ISO 2852 face profile
Also called: tri clamp cross, 9mp cross dimensions, sanitary cross 2 inch, tri clamp cross stl
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 8 in table
Notes
- A cross (9MP): a run with two opposite branches of the same size, four faces in all. Run face to face B, each branch centre to face A.
- From ¾ in up the cross has the same run and branch lengths as the equal tee of that size; the ½ in cross is longer (114.3 run, 57.1 branch) than the ½ in tee.
- Faces are the ISO 2852 profile: flat from the bore out to the flange OD with one gasket groove centred on the groove diameter (1.6 deep, bottom radius 1.2, walls 23°, edge radius 0.8, 4.01 wide at the face), 2.85 mm rim, 20° back cone, on the BPE flange diameters; the groove diameter is ISO 2852's C2 and the bead diameter of published gasket charts (4 in Ø110.0 from the chart); on ½ and ¾ in it is derived (Ø20.4, centred between the ¾ in bore and the flange OD).
Sanitary clamp crosses (9MP): ½ to 4 in size chart
| size (in) | run face to face (mm) | branch centre to face (mm) |
|---|---|---|
| ½ | 114.3 | 57.1 |
| ¾ | 120.6 | 60.3 |
| 1 | 120.6 | 60.3 |
| 1½ | 139.7 | 69.8 |
| 2 | 177.8 | 88.9 |
| 2½ | 177.8 | 88.9 |
| 3 | 190.5 | 95.2 |
| 4 | 228.6 | 114.3 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| clamp faces | ISO 2852 / BPE flange | clamp + Type B gasket to any fitting of the same size | clamp | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ASME | BPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall) | standard | ASME; dimensions are facts verify |
| ISO (via iTeh sample) | ISO 2852 clamp liners: face profile and flange / groove diameters | standard excerpt; dimensions are facts | |
| Dixon Sanitary | Clamp elbows, ferrules: dimension sheet | publisher's catalogue; dimensions cited, nothing copied | |
| Steel & O'Brien | Sanitary products catalog 2024 (clamp fittings dimension tables) | publisher's catalogue; dimensions cited, nothing copied | |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 8 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| cross-0.5in | ½ in cross (9MP): run 4.5 in face to face, branches 2.25 in centre to face | STEP · STL |
| cross-0.75in | ¾ in cross (9MP): run 4.75 in face to face, branches 2.375 in centre to face | STEP · STL |
| cross-1in | 1 in cross (9MP): run 4.75 in face to face, branches 2.375 in centre to face | STEP · STL |
| cross-1.5in | 1½ in cross (9MP): run 5.5 in face to face, branches 2.75 in centre to face | STEP · STL |
| cross-2in | 2 in cross (9MP): run 7.0 in face to face, branches 3.5 in centre to face | STEP · STL |
| cross-2.5in | 2½ in cross (9MP): run 7.0 in face to face, branches 3.5 in centre to face | STEP · STL |
| cross-3in | 3 in cross (9MP): run 7.5 in face to face, branches 3.75 in centre to face | STEP · STL |
| cross-4in | 4 in cross (9MP): run 9.0 in face to face, branches 4.5 in centre to face | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-crosses

How it fits
Connects to
Alternatives
Also needed
You might also need
Questions
How long is a 2 inch tri-clamp cross?
177.8 mm (7.0 in) face to face on the run, 88.9 mm centre to each branch face.
Is a cross the same size as a tee?
From ¾ to 4 in yes, run and branch match the equal tee; at ½ in the cross is 114.3 mm on the run against 63.5 for the tee.
