Tri-clamp bubbler gravity caps: measure specific gravity from the lid with two dip tubes

How can I measure gravity in a stainless fermenter without a hydrometer inside? · Hardware · basis: Xem Studio design: the standard 1½ in solid cap with two Ø4.76 × Ø2.4 tubes whose open ends are a fixed Δh apart, each with a 4 mm hose barb; the method is hydrostatics, Δp = ρ g Δh

Also called: measure gravity stainless fermenter, bubbler gravity sensor, differential pressure hydrometer, tilt alternative stainless, fermenter density measurement

Exact dimensions. True size, with no tolerance added.

sizes
6 in table

Notes

  • Push a slow trickle of gas (the same gas as the headspace, CO₂) down both tubes; each tube's back-pressure equals the liquid head above its tip. The difference between the two is ρ g Δh, so specific gravity = Δp / (997 × 9.81 × Δh). The fill level and the headspace pressure cancel out, as long as both tips stay under the liquid.
  • Read the difference with one differential pressure sensor across the two barbs. With Δh 200 mm, water gives 1956 Pa and every 0.001 of gravity adds about 2 Pa, so pick a sensor that resolves 1 Pa or better; a longer Δh gives more signal.
  • Nothing goes in the vessel but two thin tubes: no floating hydrometer, no radio through stainless steel.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Tri-clamp bubbler gravity caps: measure specific gravity from the… size chart

deep tube (in)dh (mm)dp water padp sg 1050 papa per 0.001 sg
1210097810271
12150146715401
12200195620542
1610097810271
16150146715401
16200195620542

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

physicsHydrostatic pressure: Δp = ρ g Δh (two bubbler tubes at a height difference Δh give the density of the liquid between them)webphysics
GW KentTri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thicknesswebpublisher's guide; dimensions cited
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 6 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
bubbler-cap-1.5in-12in-dh1001½ in cap with two Ø4.76 bubbler tubes, 304.8 and 204.8 below the face (Δh 100), 4 mm hose barbs on topSTEP · STL
bubbler-cap-1.5in-12in-dh1501½ in cap with two Ø4.76 bubbler tubes, 304.8 and 154.8 below the face (Δh 150), 4 mm hose barbs on topSTEP · STL
bubbler-cap-1.5in-12in-dh2001½ in cap with two Ø4.76 bubbler tubes, 304.8 and 104.8 below the face (Δh 200), 4 mm hose barbs on topSTEP · STL
bubbler-cap-1.5in-16in-dh1001½ in cap with two Ø4.76 bubbler tubes, 406.4 and 306.4 below the face (Δh 100), 4 mm hose barbs on topSTEP · STL
bubbler-cap-1.5in-16in-dh1501½ in cap with two Ø4.76 bubbler tubes, 406.4 and 256.4 below the face (Δh 150), 4 mm hose barbs on topSTEP · STL
bubbler-cap-1.5in-16in-dh2001½ in cap with two Ø4.76 bubbler tubes, 406.4 and 206.4 below the face (Δh 200), 4 mm hose barbs on topSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-bubbler-gravity-caps

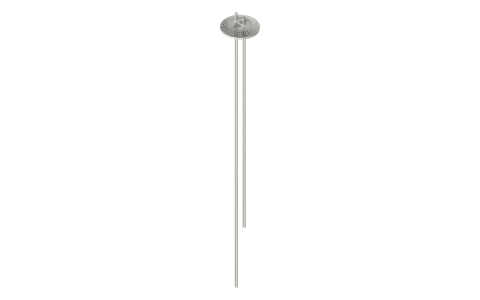

Tri-clamp bubbler gravity caps: measure specific gravity from the lid with two dip tubes, isometric render of a generated part
Render of bubbler-cap-1.5in-16in-dh100 from the free STEP; not to scale.

Fits with

Questions

Why two tubes and not one?

One tube measures depth × density, so a level change looks like a gravity change; two tubes a fixed distance apart measure density alone.

Which length for a 6 × 18 in vessel?

The 16 in cap: the deep tip sits just above the dished bottom, the shallow tip 100–200 mm higher, both under a normal fill.
