Tri-clamp dip-tube caps: 1½ and 2 in, ⅜ in tube 6 to 24 in long

How do I pull liquid out of the bottom of a tri-clamp vessel from the top? · Hardware · basis: Xem Studio design: the standard solid cap with a ⅜ in (9.53 × 1.2 wall) dip tube below and a ⅜ in hose barb (14MPHR barb profile) above

Also called: tri clamp dip tube, fermenter dip tube, tri clamp racking cane

Exact dimensions. True size, with no tolerance added.

sizes
10 in table

Notes

  • Transfer or sample from the bottom through the lid: push gas in another port and the liquid rises up the tube. For a 6 × 18 in vessel pick the 16 in tube (clears a dished bottom); 18 in reaches the floor.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Tri-clamp dip-tube caps: 1½ and 2 in, ⅜ in tube 6 to 24 in long size chart

clamptube (in)tube (mm)
1–1½6152.4
1–1½12304.8
1–1½16406.4
1–1½18457.2
1–1½24609.6
26152.4
212304.8
216406.4
218457.2
224609.6

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GW KentTri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thicknesswebpublisher's guide; dimensions cited
Dixon14MPHR brewery hose barb: A and barb OD B (hose ID + 0.040 in) per size, ½ to 6 inPDFpublisher's catalogue; dimensions cited
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 10 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
dip-tube-cap-1.5in-6in1–1½ in cap with a ⅜ in (Ø9.53) dip tube 6 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-1.5in-12in1–1½ in cap with a ⅜ in (Ø9.53) dip tube 12 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-1.5in-16in1–1½ in cap with a ⅜ in (Ø9.53) dip tube 16 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-1.5in-18in1–1½ in cap with a ⅜ in (Ø9.53) dip tube 18 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-1.5in-24in1–1½ in cap with a ⅜ in (Ø9.53) dip tube 24 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-2in-6in2 in cap with a ⅜ in (Ø9.53) dip tube 6 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-2in-12in2 in cap with a ⅜ in (Ø9.53) dip tube 12 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-2in-16in2 in cap with a ⅜ in (Ø9.53) dip tube 16 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-2in-18in2 in cap with a ⅜ in (Ø9.53) dip tube 18 in below the face and a ⅜ in hose barb outsideSTEP · STL
dip-tube-cap-2in-24in2 in cap with a ⅜ in (Ø9.53) dip tube 24 in below the face and a ⅜ in hose barb outsideSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-dip-tube-caps

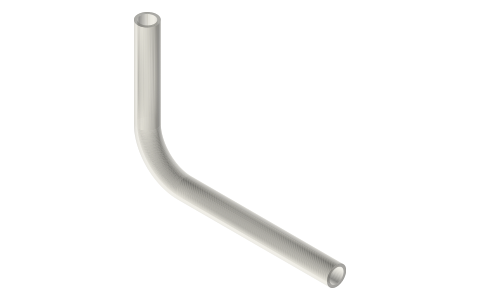

Tri-clamp dip-tube caps: 1½ and 2 in, ⅜ in tube 6 to 24 in long, isometric render of a generated part
Render of dip-tube-cap-2in-6in from the free STEP; not to scale.

Fits with

Questions

Which length for a 6 × 18 in vessel?

16 in clears the dished bottom; use 18 in only with the round bottom.
