10 in tri-clamp end cap with a 2 in ferrule at the centre

What 10 inch tri-clamp cap reduces to a 2 inch ferrule? · Hardware · basis: Fabrication spec: 10 in end cap profile at 15.875 (5/8 in) instead of the standard 12.19, a 2 in L14AM7-type ferrule welded on at the centre, bosses machined; exact geometry

Also called: 10 inch tri clamp cap with ferrule, tri clamp cap 2 inch boss, stirling cold plate tri clamp

Long Earth Society build part. Parts of the HTD engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • Why thicker than a stock cap: at 6 bar gauge a stock 0.480 in cap sees 85 MPa and bows 0.35 mm; this 15.875 cap with its welded centre neck sees about 53 MPa and bows 0.16 mm, and it carries the welded ferrule, the guide boss and the NPT bosses.
  • Main cap: the 2 in ferrule takes the bored power spool; inside it a Ø16 boss 20 tall carries the Ø6 displacer-rod guide (35.9 long through boss and plate); six Ø10 passages on r 16 let the gas between the chamber and the power cylinder; a 1/8 NPT boss at r 43 is the working-space gauge port.
  • The flat top (inside Ø196.8, where the 20° back cone ends) carries the optional water tray.

10 in tri-clamp end cap with a 2 in ferrule at the centre size chart

partthickness (mm)centreports
cold-cap-10in-main15.8752 in ferrule, Ø6 guide, 6 × Ø101/8 NPT gauge

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
faceISO 2852 10 ingasket-10in + 10 in clampclampall
2 in ferrule faceISO 2852 2 intc-gasket-2in + 2 in clampclampall
rod guideØ6 × 35.9 (plate + boss)Ø6 displacer rodruncold-cap-10in-main*
gas passages6 × Ø10 on r 16gas (no contact)designedcold-cap-10in-main*
gauge port1/8-27 NPT, tap drill Ø8.6 × 101/8 NPT maledesignedall
flat topinside Ø196.8water tray floordesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Steel & O'BrienSanitary products catalog 2024: 16AMP end caps 10 / 12 in (A 0.480, B 10.570 / 12.570 in); L14AM7 ferrules 1.500 in; clamp ratings 13MHHM, 13MHP, 13ASMEPDFpublisher's catalogue; dimensions cited, nothing copied
McGraw-HillYoung & Budynas, Roark's Formulas for Stress and Strain, 7th ed.: Table 8.1 (fixed–guided beam), Table 11.2 (circular plates under uniform pressure)bookformulas are facts verify
ASMEASME B1.20.1 Pipe Threads (NPT): 1/8-27 and 1/4-18, tap drills Ø8.6 / Ø11.1 as on this site's thread envelopesstandardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cold-cap-10in-main10 in cold cap 15.875 thick: 2 in L14AM7-type ferrule welded at the centre, Ø16 × 20 guide boss, Ø6 rod guide, six Ø10 passages on r 16, 1/8 NPT gauge boss at r 43STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cap-10in-2in-ferrule

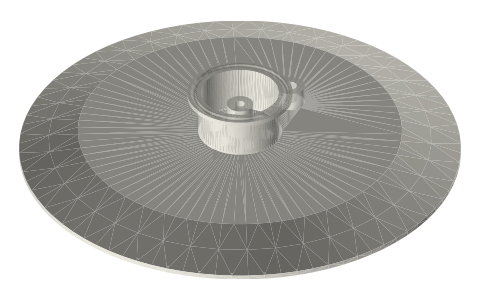

10 in tri-clamp end cap with a 2 in ferrule at the centre, isometric render of a generated part
Render of cold-cap-10in-main from the free STEP; not to scale.

Fits with

Questions

Why not a stock 10 in cap?

It would hold the pressure, but the centre needs a welded 2 in ferrule and bosses; I make the plate 5/8 in so the welded centre and the ports keep the stress and bow low.
