Water tray for a 10 in cold cap (optional)

What water tray sits on a 10 inch tri-clamp cap? · Hardware · basis: Exact geometry

Also called: stirling water cooled top plate

Long Earth Society build part. Parts of the HTD engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • A separate heat exchanger, optional: an open ring tray that sits on the cold cap's flat top round the 2 in ferrule and holds water. The cap takes about the cup wall's leak plus the engine's rejected heat (a few hundred watts at full fire), so the water warms and has to be topped up; ice water helps. The engine runs without it, hotter on the cold side.

Water tray for a 10 in cold cap size chart

id (mm)od (mm)height (mm)
118.0190.040.0

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
floorØ118–Ø190cold cap flat top (sits on it)designedall
IDØ1182 in ferrule, clamp and gauge boss (no contact)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
water-tray-10inwater tray (heat exchanger, optional): ring Ø118/Ø190 × 40, 2 walls and floor, sits on the cap's flat topSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cap-water-tray-10in

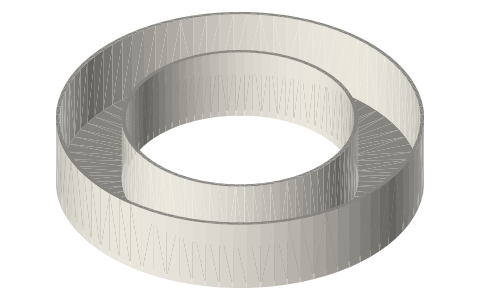

Water tray for a 10 in cold cap (optional), isometric render of a generated part
Render of water-tray-10in from the free STEP; not to scale.

Fits with

Questions

Does the engine need the tray?

No, but the cold side runs hotter and the output drops without it.
