Tri-clamp carbonation stone caps: 1½ in, 4 to 16 in down tube

How do I mount a carbonation stone on a tri-clamp? · Hardware · basis: Xem Studio design: the standard 1½ in solid cap, a ¼ in hose barb outside, a Ø6.35 down tube and a socket for a ½ in (Ø12.7) diffusion stone

Also called: tri clamp carb stone, carbonation stone tri clamp

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Gas in through the barb, out through the stone at the bottom: carbonating or oxygenating wort in the vessel.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Tri-clamp carbonation stone caps: 1½ in, 4 to 16 in down tube size chart

tube (in)tube (mm)stone
4101.6½ in × 2 in stone
6152.4½ in × 2 in stone
12304.8½ in × 2 in stone
16406.4½ in × 2 in stone

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GW KentTri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thicknesswebpublisher's guide; dimensions cited
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
carb-stone-cap-1.5in-4in1½ in cap: ¼ in barb outside, Ø6.35 tube 4 in down to a Ø12.7 × 15 socket for a ½ in diffusion stoneSTEP · STL
carb-stone-cap-1.5in-6in1½ in cap: ¼ in barb outside, Ø6.35 tube 6 in down to a Ø12.7 × 15 socket for a ½ in diffusion stoneSTEP · STL
carb-stone-cap-1.5in-12in1½ in cap: ¼ in barb outside, Ø6.35 tube 12 in down to a Ø12.7 × 15 socket for a ½ in diffusion stoneSTEP · STL
carb-stone-cap-1.5in-16in1½ in cap: ¼ in barb outside, Ø6.35 tube 16 in down to a Ø12.7 × 15 socket for a ½ in diffusion stoneSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-carb-stone-caps

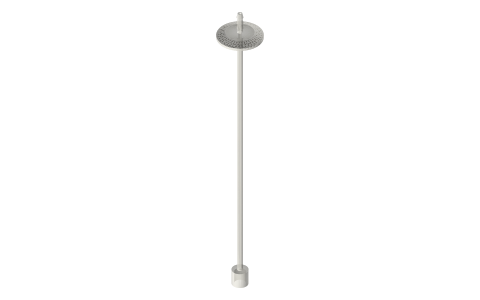

Tri-clamp carbonation stone caps: 1½ in, 4 to 16 in down tube, isometric render of a generated part
Render of carb-stone-cap-1.5in-12in from the free STEP; not to scale.

Fits with

Questions

Which length?

Long enough to put the stone near the bottom: 16 in for a 6 × 18 in vessel.
