Tri-clamp heat sink: radial fin sleeve for a 2 in closed-end cup

What heat sink fits over a 2 inch tri-clamp cup? · Hardware · basis: ASME BPE 2 in tube OD Ø50.8 (the sleeve's bore); fin count, thickness and reach are design values; M4 set screws ISO 4026

Also called: thermoacoustic hot end fins, slide on fins 2 inch tube, finned sleeve tri clamp, propane heated thermoacoustic engine fins

Long Earth Society build part. The optional fins on my propane standing-wave engines' hot end. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • A separate, optional heat exchanger for the closed hot end of the standing-wave engines: a sleeve whose bore is exactly the tube's Ø50.8 slides over the closed end of the plain cup-2in-133.35 (a standard closed-end 2 in spool, 133.35 mm), and 16 radial fins carry the torch's heat into the hot cavity and the hot exchanger. Three M4 set screws in a band above the fins hold it.
  • It covers 49 to 131.85 mm from the cup's face, so it stays clear of the water jacket and the clamp; the fins reach Ø80, as far from the tube as the Ø76 fins the hot end used to carry built on.
  • Without it the flame heats the bare cup: the engine is complete and still runs, but needs more heat to start. The cup stays a plain part a sanitary fabricator makes; the sleeve can be made any way you like.
  • Fits: the bore slides on the tube OD (slide fit), the set screws clamp it.

Tri-clamp heat sink: radial fin sleeve for a 2 in closed-end cup size chart

featurevalue
boreØ50.8 (tube OD)
length82.85
wall2.0
fins16 × 1.6 thick, to Ø80
set screws3 × M4, 0 / 120 / 240°
fitscup-2in-133.35

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ50.8 = the 2 in tube ODcup-2in-133.35 tube OD (over its closed end)slideall
set-screw holes3 × Ø3.3 at 0 / 120 / 240°M4 tap drill; M4 × 4 set screws onto the tube ODclampall
fins16 × 1.6 to Ø80, 56–131.85 from the cup facetorch flame (no contact)designedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

G. W. Swift (LANL / Acoustical Society of America)Thermoacoustics: A Unifying Perspective for Some Engines and Refrigerators (Rott's equations, screen relations, DeltaEC)web, softwareLANL verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ta-fin-sleeve-2in-16x80radial-fin sleeve for the 2 in tube: bore Ø50.8 (the tube OD) × 82.85, 2 mm wall, 16 radial fins 1.6 thick to Ø80 over the last 75.85, 7 mm band with 3 × M4 tapped (Ø3.3) at 0 / 120 / 240°; drawn in the cup's frame (49 to 131.85 from its face)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cup-heat-sink-2in

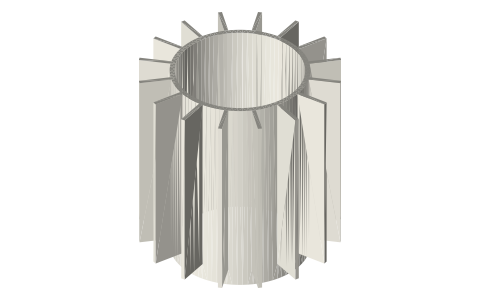

Tri-clamp heat sink: radial fin sleeve for a 2 in closed-end cup, isometric render of a generated part
Render of ta-fin-sleeve-2in-16x80 from the free STEP; not to scale.

Fits with

Questions

Do I need it?

No. It is an optional heat exchanger; without it the engine needs more heat at the cup to start.

Why not fins on the cup itself?

Sanitary fabricators make plain spools and closed-end cups; fins built onto one are not something they make. A separate sleeve keeps the cup standard.
