2 in tri-clamp cup liners Ø47.5 / Ø44, 17 to 109.4 mm

What liner fits inside a 2 inch closed-end tri-clamp cup? · Hardware · basis: Design values: lengths = the hot section's inside depth (length − 3 mm closed end) − four 10 mm hot exchanger discs

Also called: thermoacoustic hot cavity liner, hot exchanger spacer tri clamp, closed end spool liner

Long Earth Society build part. The hot cavity of my modular thermoacoustic engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • A plain tube that stands on the inside of a closed 2 in hot end and holds the hot heat exchanger at its top, so the exchanger's top face is flush with the hot end's clamp face. The stack in the next section then stands on the exchanger, across the hot joint.
  • Bore Ø44: the gas inside the liner is the engine's hot cavity, the gas spring at the hot end that sets how much the gas moves through the stack. Outside Ø47.5: the spool bore, a slide fit.
  • It runs at the hot end's temperature: it has to take that temperature. The file is the geometry; what it is made of is the builder's choice.

2 in tri-clamp cup liners Ø47.5 / Ø44, 17 to 109.4 mm size chart

parthot sectionsection length (mm)inside depth (mm)liner (mm)hot exchanger above (mm)
ta-hot-liner-2in-17cup-2in-6060.057.017.040.0
ta-hot-liner-2in-47cup-2in-9090.087.047.040.0
ta-hot-liner-2in-77cup-2in-120120.0117.077.040.0
ta-hot-liner-2in-109.4closed-spool-2in-152.4152.4149.4109.440.0

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
outsideØ47.5closed hot cup / closed-end spool bore Ø47.5slideall
insideØ44hot cavity gas (no contact)designedall
lower endflat ring Ø44–Ø47.5the cup's closed end (inside floor)designedall
upper endflat ring Ø44–Ø47.5the lowest hot exchanger disc's outer ringdesignedall
length17 / 47 / 77 / 109.4sets the top hot disc flush with the hot section facedesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Xem Studiotools/gen_ta_modular.py: the section geometry, the network model and every number on these pagescodeCC BY 4.0
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 4 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ta-hot-liner-2in-17hot-cavity liner Ø47.5 / Ø44 × 17: stands on the closed end of cup-2in-60 and carries the four hot exchanger discs, whose top is then flush with the faceSTEP · STL
ta-hot-liner-2in-47hot-cavity liner Ø47.5 / Ø44 × 47: stands on the closed end of cup-2in-90 and carries the four hot exchanger discs, whose top is then flush with the faceSTEP · STL
ta-hot-liner-2in-77hot-cavity liner Ø47.5 / Ø44 × 77: stands on the closed end of cup-2in-120 and carries the four hot exchanger discs, whose top is then flush with the faceSTEP · STL
ta-hot-liner-2in-109.4hot-cavity liner Ø47.5 / Ø44 × 109.4: stands on the closed end of closed-spool-2in-152.4 and carries the four hot exchanger discs, whose top is then flush with the faceSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-cup-liners-2in

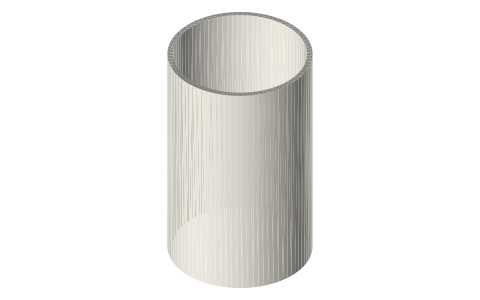

2 in tri-clamp cup liners Ø47.5 / Ø44, 17 to 109.4 mm, isometric render of a generated part
