Tri-clamp hop baskets: hang from the top joint of a 4, 6 or 8 in vessel

How do I dry hop in a tri-clamp vessel without loose hops? · Hardware · basis: Xem Studio design: an ISO 2852 Type B gasket whose bore carries a slotted basket (Ø = bore − 12, 2 mm wall, 3 mm slots)

Also called: tri clamp hop spider, dry hop basket tri clamp, 6 inch hop basket

Exact dimensions. True size, with no tolerance added.

sizes
6 in table

Notes

  • Clamp it in the top joint in place of the gasket: the basket hangs in the vessel and lifts out with the lid off. Slots are 3 mm.
  • Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.

Tri-clamp hop baskets: hang from the top joint of a 4, 6 or 8 in… size chart

size (in)depth (in)basket od (mm)slots
4685.429
41285.429
66134.947
612134.947
86185.764
812185.764

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

GW KentTri-clamp fittings guide: tube OD, flange OD and ID per size to 12 in; solid cap thicknesswebpublisher's guide; dimensions cited
Rubber FabTri-clamp dimensions chart (ID, OD, bead per clamp size, ½ to 12 in and DIN 32676)PDFpublisher's chart; dimensions cited, nothing copied
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 6 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
hop-basket-4in-6in4 in hop basket: hangs from a Type B gasket in the top joint, slotted basket Ø85.4 × 6 in, 29 slots 3 wideSTEP · STL
hop-basket-4in-12in4 in hop basket: hangs from a Type B gasket in the top joint, slotted basket Ø85.4 × 12 in, 29 slots 3 wideSTEP · STL
hop-basket-6in-6in6 in hop basket: hangs from a Type B gasket in the top joint, slotted basket Ø134.9 × 6 in, 47 slots 3 wideSTEP · STL
hop-basket-6in-12in6 in hop basket: hangs from a Type B gasket in the top joint, slotted basket Ø134.9 × 12 in, 47 slots 3 wideSTEP · STL
hop-basket-8in-6in8 in hop basket: hangs from a Type B gasket in the top joint, slotted basket Ø185.7 × 6 in, 64 slots 3 wideSTEP · STL
hop-basket-8in-12in8 in hop basket: hangs from a Type B gasket in the top joint, slotted basket Ø185.7 × 12 in, 64 slots 3 wideSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-hop-baskets

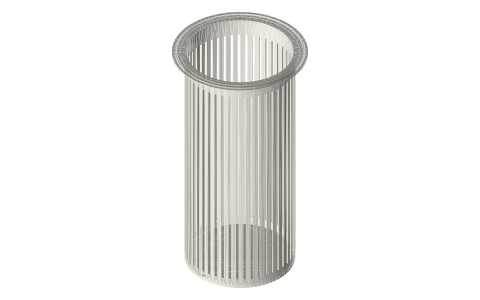

Tri-clamp hop baskets: hang from the top joint of a 4, 6 or 8 in vessel, isometric render of a generated part
Render of hop-basket-6in-12in from the free STEP; not to scale.

Fits with

Questions

Does it seal?

Yes: it is a Type B gasket with the basket below its web.
