Frame for a 2 in tri-clamp cross with a motor inside

What frame holds a sealed 2 inch tri-clamp cross? · Hardware · basis: Positions from the engine layout (tools/gen_sealed_generator.py layout); ISO 273 medium clearance for M5; Ø3.3 for an M4 thread

Also called: sealed stirling generator frame, tri clamp generator frame

Long Earth Society build part. The frame of my sealed generator. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

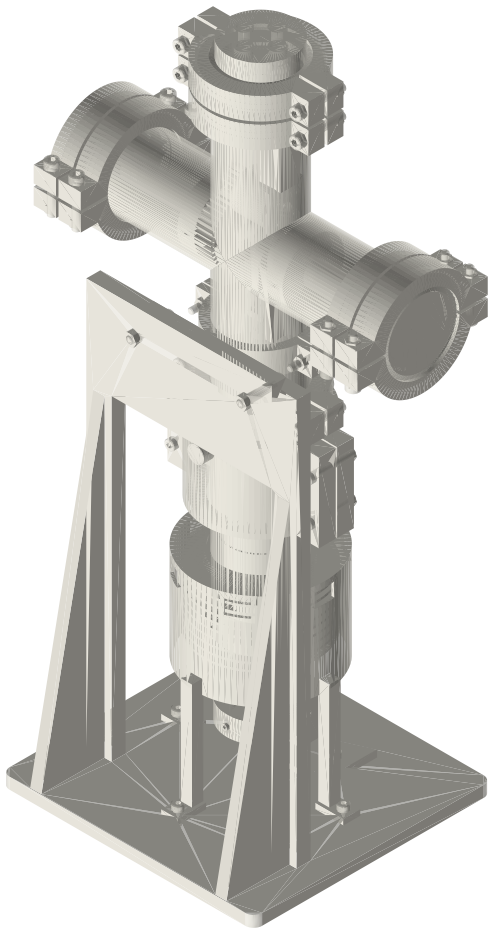

  • One piece: a base plate with the torch stand and the burner shroud on it, and a wall behind the engine. The spool hanger clamps the cross's lower run and its bar bolts to the wall with two M5 × 25 and nuts, so the whole engine hangs over the flame.
  • A window in the wall leaves room for the shroud, the jacket and its fill ports.

Frame for a 2 in tri-clamp cross with a motor inside size chart

featurevalue
base180 × 170 × 8
wall150 × 10, top 297.6
windowx ±57, to 233.8
hanger screws2 × Ø5.5 at x ±39.4, z 279.6
torch stand2 × Ø3.3 at x ±25, y 28

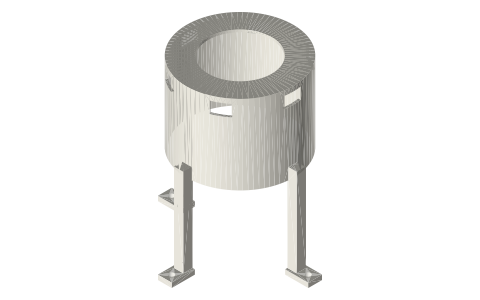

shroud feet3 × Ø3.3 at (±59, 0), (0, −59)

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
hanger holes2 × Ø5.5M5 clearance (ISO 273 medium)designedall
torch-stand and shroud holes5 × Ø3.3 (M4 tapped)shcs-m4x10designedall
wall faceflat, 39.4 from the engine axisspool hanger bardesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISOISO 273 clearance holes for bolts and screws (fine / medium / coarse)standarddimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
sealed-generator-frame-2inframe: base 180 × 170 × 8, wall 150 × 10 to 297.6 with a window x ±57 to 233.8, 2 gussets, 2 × Ø5.5 for the hanger bar at 279.6, Ø3.3 (M4 tapped) for the torch stand (2) and the shroud feet (3)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-sealed-generator-frame

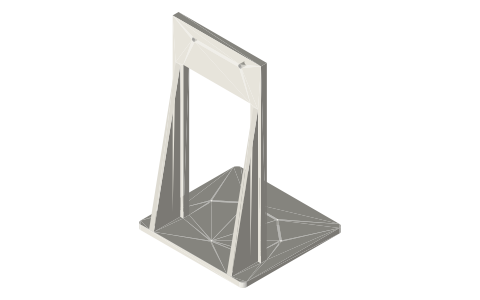

Frame for a 2 in tri-clamp cross with a motor inside, isometric render of a generated part
Render of sealed-generator-frame-2in from the free STEP; not to scale.

Fits with

Questions

What does the frame carry?

The torch stand and the shroud on the base, and the engine on the spool hanger at the wall.
