2 in tri-clamp tee plugs with a rod bore and a Ø12 passage

What plug fits the run of a 2 inch tri-clamp tee with a rod through it? · Hardware · basis: Stock 2 in tee bore Ø47.5 (ASME BPE); passage size from the cycle model

Also called: tri clamp tee filler plug, stirling dead volume filler

Long Earth Society build part. The tee fillers of my walking-beam engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
2 in table

Notes

  • A standard 2 in tee holds about 390 mL of gas. Two inserts fill it: a run plug (slid in from a run end) and a branch plug whose saddle-shaped bottom sits on it. What is left is a Ø12 passage from the hot spool's side up to the power cylinder, the displacer rod's Ø6.6 bore and a Ø4 hole to the gland cap's ports.
  • Gas left in the tee and its joints about 24.9 mL; Ø44 spigots reach through each gasket's lip to 0.5 mm from what they face.

2 in tri-clamp tee plugs with a rod bore and a Ø12 passage size chart

partsize
tee-run-plug-2in-rod6Ø47.50 × 175.7, spigots Ø44
tee-branch-plug-2inØ47.50 to 87.85, spigot Ø44

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
outsideØ47.502 in tee boreslideall
spigotsØ44.0inside the gasket lips (no contact)designedall
rod boreØ6.6Ø6 displacer rod (no contact)designedtee-run-plug*
saddleØ47.50 cylinderrun plug (rests on it)designedtee-branch-plug*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
tee-run-plug-2in-rod6run filler Ø47.50 × 175.7 for a 2 in tee with Ø44 spigots to x ±90.65 / 90.10, Ø6.6 rod bore, Ø12 passages (z 12 axial, x 0 up), Ø4 to the +X endSTEP · STL
tee-branch-plug-2inbranch filler Ø47.50 from the run bore to 87.85, Ø44 spigot to 90.65, Ø12 passage on the axisSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-tee-filler-plugs

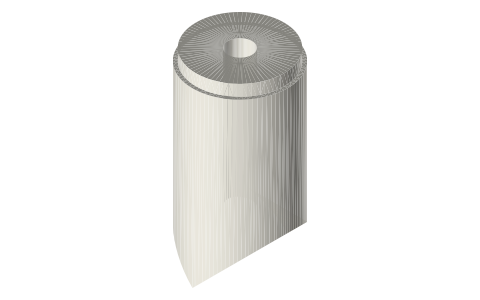

2 in tri-clamp tee plugs with a rod bore and a Ø12 passage, isometric render of a generated part
Render of tee-branch-plug-2in from the free STEP; not to scale.

Fits with

Questions

Do they seal?

No, they only fill: the gasket and clamps seal. The fit in the bore is a slide fit.
