Frame for a 2 in tri-clamp tee with a rolling-diaphragm head

What frame holds a tri-clamp tee and a torch stand? · Hardware · basis: Design values; hanger bar hole spacing (78.8) and height from the spool hanger collars on this site; torch-stand hole pattern from the torch stand on this site

Also called: stirling engine frame tri clamp, torch stirling stand

Long Earth Society build part. The stand under my rolling-diaphragm engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • One frame for all three rolling-diaphragm engines: the 2 in cup hangs from a spool hanger bolted to the wall, its closed end 40 mm over the torch stand's ring.
  • The wall has a window behind the hot end and the optional finned cooler, so the fins clear it and the flame has air.
  • The base reaches 300 mm toward +X, under the power head and flywheel on the tee's branch.

Frame for a 2 in tri-clamp tee with a rolling-diaphragm head size chart

featurevalue (mm)
base370 × 150 × 8
wall124 × 10, top z 234.85
hanger holesx ±39.4, z 226.85
torch stand holes(±25, 28), M4
cup bottom93.0

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
hanger-bar holes2 × Ø5.5M5 screwsdesignedall
torch-stand holes2 × Ø3.3M4 tap drilldesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
rd-frame-2inframe: base 370 × 150 × 8 (x −70..300, y −95..55), wall x ±62, y -49.4..-39.4 to z 234.85 with a window x ±30 from z 93 to 217.85, 2 × Ø5.5 at x ±39.4, z 226.85 for the hanger bar, two gussets, 2 × M4 tapped (Ø3.3) at (±25, 28) for the torch standSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-tee-frame-rolling-diaphragm

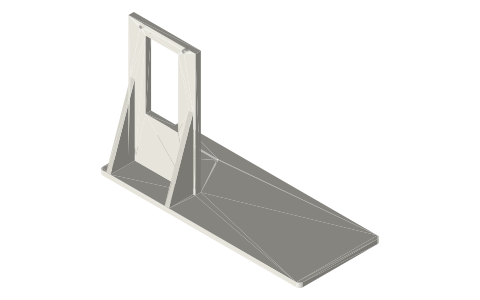

Frame for a 2 in tri-clamp tee with a rolling-diaphragm head, isometric render of a generated part
Render of rd-frame-2in from the free STEP; not to scale.

Fits with

Questions

Which engines use it?

The rolling-diaphragm beta, Ringbom and gamma: they share the cup, the hanger height and the torch position.
