V-twin crank disc Ø26, one pin, 16 mm stroke

What crank disc drives two cylinders at 90 degrees from one pin? · Hardware · basis: 90° V alpha: both con-rods on one pin; throw 8 (stroke 16)

Also called: v twin stirling crank, alpha crank disc one pin, crank disc 8 mm throw 5 mm bore

Long Earth Society build part. The two-syringe alpha, complete. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • Ø26 × 6 disc with a Ø5 bore (fit: slide) and a Ø2.5 radial hole (M3 tap size) for the grub screw.
  • ONE Ø3 hole (fit: press) at 8 mm for a Ø3 × 20 crank pin; both con-rods ride it, one plane each, with 1 mm spacers and a 3 mm collar on the end.
  • A two-pin disc with pins 90° apart under a 90° V would give 0° or 180° and the engine would not run; that disc is for parallel cylinders.

V-twin crank disc Ø26, one pin, 16 mm stroke size chart

parametervalue
discØ26 × 6
boreØ5
throw8
stroke16
pin hole1 × Ø3
grub holeØ2.5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
crank-disc boreØ5Ø5 crankshaft (M3 grub)slidealpha-crank-disc-*
crank-disc pin holeØ3Ø3 × 20 crank pinpressalpha-crank-disc-*
crank-disc grub holeØ2.5M3 tap drilldesignedalpha-crank-disc-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site
WikipediaStirling engine (alpha configuration)webCC BY-SA 4.0 (text)

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
alpha-crank-disc-s16crank disc Ø26 × 6, Ø5 bore, Ø2.5 tap-drill hole for an M3 grub, ONE Ø3 pin at 8 mm (stroke 16): both con-rods share itSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=v-twin-crank-disc

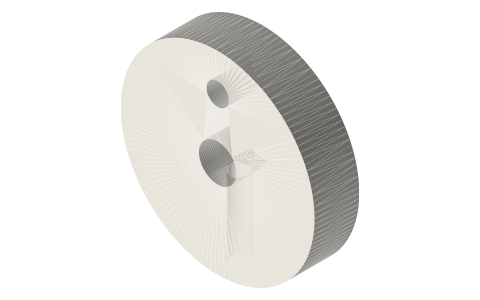

V-twin crank disc Ø26, one pin, 16 mm stroke, isometric render of a generated part
Render of alpha-crank-disc-s16 from the free STEP; not to scale.

Questions

Does a V-twin alpha need two crank pins?

No. In a 90° V both rods share one pin; the V gives the 90° phase.

What stroke does the alpha crank disc give?

16 mm (pin at 8 mm), about 2.6 mL per 10 mL syringe.
