775 brushed DC motor Ø42 × 66.7 mm, Ø5 shaft

What are the 775 motor dimensions and mounting holes? · Hardware · basis: Common supplier drawings for the 775 brushed motor; values typical, verify on your unit

Also called: 775 motor dimensions, 775 motor mounting holes, 775 motor shaft size, 775 motor stl, 775 dc motor step

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • The 775 can is Ø42 × 66.7 mm with a 1.5 mm chamfer on the front edge.
  • The front face has a Ø17.5 × 2 mm boss and a Ø5 shaft 17 mm long; 85.7 mm overall.
  • Two M4 holes on 29 mm centres in the face are drawn as Ø4 plain bores 6 mm deep (the thread's major diameter).
  • It is mounted by the face holes or in a Ø42 cradle (see Mating features).

775 brushed DC motor Ø42 × 66.7 mm, Ø5 shaft size chart

featuresize (mm)
canØ42 × 66.7
bossØ17.5 × 2
shaftØ5 × 17
face holes2 × M4 on 29
overall85.7

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
775 canØ42cradlesocketmotor-775*
775 shaftØ5hub boreslidemotor-775*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

PololuMicro metal gearmotor dimension diagramPDF, STEPPololu site terms verify
DFRobotTT geared motor drawingwebDFRobot site terms verify
WikipediaDC motorwebCC BY-SA 4.0 (text)

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
motor-775775 brushed DC: Ø42 × 66.7, 2 × M4 on 29 mm (tapped, Ø4 plain bores), Ø5 shaft × 17STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=775-dc-motor

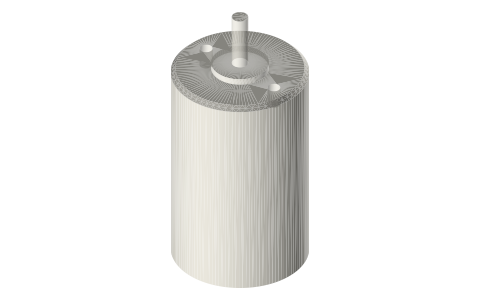

775 brushed DC motor Ø42 × 66.7 mm, Ø5 shaft, isometric render of a generated part
Render of motor-775 from the free STEP; not to scale.

You might also need

Questions

What are 775 motor dimensions?

Ø42 × 66.7 mm body, Ø5 shaft 17 mm long, two M4 holes 29 mm apart; 85.7 mm overall.

What is the 775 shaft diameter?

5 mm, 17 mm long, on a Ø17.5 × 2 boss.
