Con-rods and links with a 626 big end and a 625 small end: 55 to 488 mm

What con-rod uses 626 and 625 bearings? · Hardware · basis: 626 and 625 sizes from their standards; lengths are design values

Also called: stirling con rod 626, connecting rod ball bearing

Long Earth Society build part. The con-rods of my performance engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
5 in table

Notes

  • At 5 bar gauge the piston force swings about ±317 N; a 626 big end on a Ø6 crank pin and a 625 small end on the Ø5 wrist pin carry it on ball bearings.

Con-rods and links with a 626 big end and a 625 small end: 55 to 488… size chart

length (mm)big endsmall end
100.0626625
120.0626625
55.0626625
60.0626625
488.4626625

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
big endØ19 × 6 pocket, Ø15 lip626 bearing ODpressall
small endØ16 × 5 pocket, Ø12 lip625 bearing ODpressall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 5 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
conrod-626-625-100con-rod 100 between eyes, 7 thick: 626 pocket Ø19 × 6 (big end), 625 pocket Ø16 × 5 (small end)STEP · STL
conrod-626-625-120con-rod 120 between eyes, 7 thick: 626 pocket Ø19 × 6 (big end), 625 pocket Ø16 × 5 (small end)STEP · STL
conrod-626-625-55con-rod 55 between eyes, 7 thick: 626 pocket Ø19 × 6 (big end), 625 pocket Ø16 × 5 (small end)STEP · STL
conrod-626-625-60con-rod 60 between eyes, 7 thick: 626 pocket Ø19 × 6 (big end), 625 pocket Ø16 × 5 (small end)STEP · STL
conrod-626-625-488.4con-rod 488.4 between eyes, 7 thick: 626 pocket Ø19 × 6 (big end), 625 pocket Ø16 × 5 (small end)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=con-rods-626-625

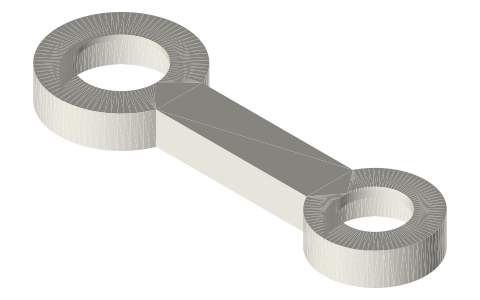

Con-rods and links with a 626 big end and a 625 small end: 55 to 488 mm, isometric render of a generated part
Render of conrod-626-625-55 from the free STEP; not to scale.

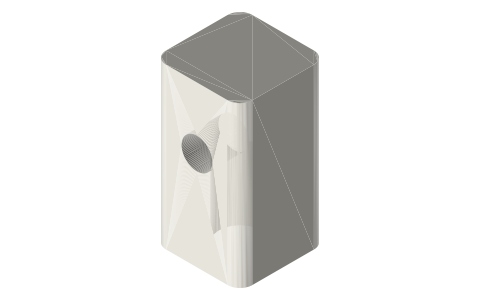

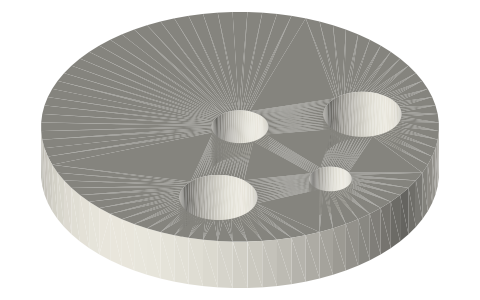

Fits with

Questions

Which engine uses which?

100: both rods of the horizontal gamma and the walking-beam gamma's displacer; 120 and 55: the beta's piston and displacer; 60 and the long link: the walking beam's two links.
