Lifting tongs: load-tightened scissor grip

Why do lifting tongs grip harder with a heavier load? · Hardware · basis: Xem Studio design following Brown No. 494 (1868)

Also called: lifting tongs, stone tongs, scissor tongs, self-tightening grab, tenazas de elevación, Hebezange

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: arms, links, load drawn; stays the same: arm angle.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • Two arms crossed on a pivot, their upper ends drawn together by two equal links meeting at a shackle: the hoist pulls the shackle up, the links pull the arm tops inwards, and the feet below the pivot close on the load. The grip is proportional to the pull, so the heavier the load the tighter it is held.
  • Drawn gripping a 40 mm block: arms crossed at ±22.02°, link holes 60 mm above and feet 80 mm below the pivot, 40 mm links to the shackle pin 88.69 mm above the pivot.
  • Brown's No. 494 (lifting tongs with a shackle and links); ice tongs, log tongs and crane grabs.

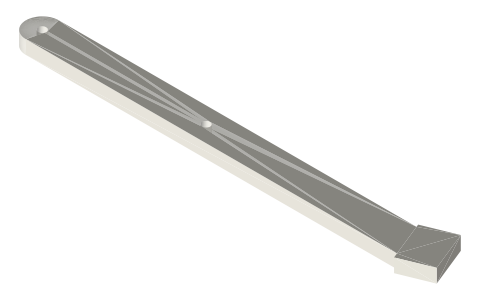

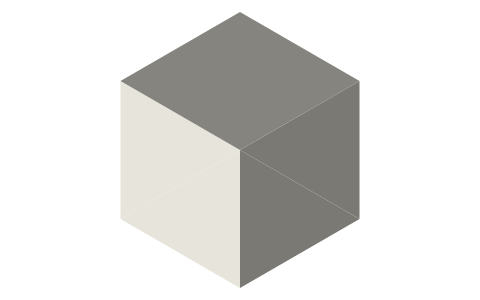

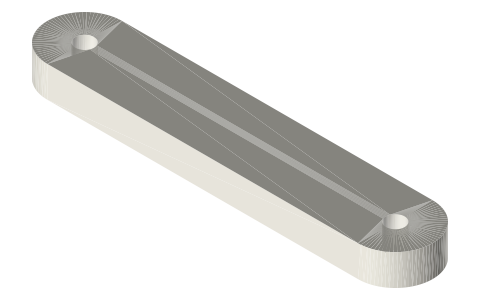

  • Parts (each has its own page): lifting-tong-arm-140-foot, tongs-shackle-link-50, load-block-40, four-bar-links, dowel-pins-metric.
  • Brown's movement No. 494 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Lifting tongs: load-tightened scissor grip size chart

parametervalue
arms2, crossed, 60 / 80 mm
links2 × 40 mm
load drawn40 mm block
arm angle±22.02°

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 494: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
lifting-tongs-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=lifting-tongs-mechanism

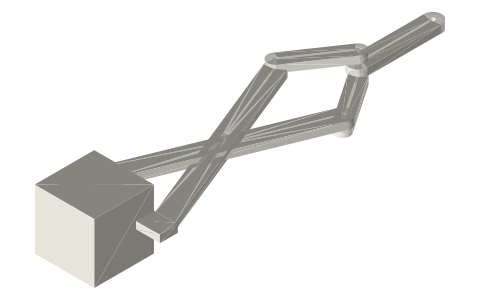

Lifting tongs: load-tightened scissor grip, isometric render of a generated part
Render of lifting-tongs-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

Why do lifting tongs grip harder with a heavier load?

Two arms crossed on a pivot, their upper ends drawn together by two equal links meeting at a shackle: the hoist pulls the shackle up, the links pull the arm tops inwards, and the feet below the pivot close on the load. The grip is proportional to the pull, so the heavier the load the tighter it is held.
