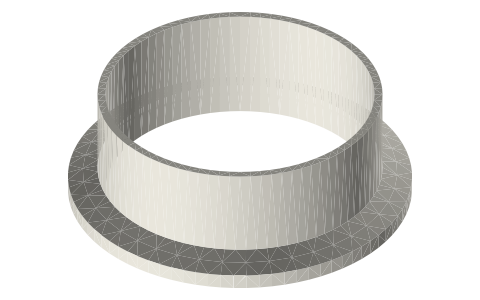

DIN 32676 clamp ferrules, series A (metric), DN10 to DN150
What are the dimensions of a DIN 32676 DN25 clamp ferrule? · Standard part · basis: DIN 32676 series A on DIN 11850 tube: tube OD × wall per DIN 11850 series 2; flange and gasket bead per the Rubber Fab chart (its gasket IDs match these bores); ISO 2852 face profile
Also called: din 32676 ferrule, metric tri clamp, dn25 clamp ferrule, dn50 tri clamp dimensions, 34mm tri clamp
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 12 in table
Notes
- Metric clamp ferrules for European fittings and equipment: DN10–DN20 share the 34 mm flange, DN25–DN40 the 50.5, DN50 64, DN65 91, DN80 106, DN100 119, DN125 155, DN150 183.
- A 50.5 or 64 mm metric flange mates with the inch clamp of the same flange size; the tube behind it is metric.
- Every clamp face is the ISO 2852 profile used across this site: 2.85 mm rim, flat face with the gasket groove (K 1.6 deep, R3 1.2 bottom, 23° walls, P2 0.8 edges) on C2, 20° back cone. Flange C3 / groove C2 / tube OD × wall, mm: ½–¾ in 25.0 / 20.4 (derived) / 12.7–19.05 × 1.65; 1–1½ in 50.5 / 43.5 / 25.4–38.1 × 1.65; 2 in 64.0 / 56.5 / 50.8 × 1.65; 2½ in 77.5 / 70.5 / 63.5 × 1.65; 3 in 91.0 / 83.5 / 76.2 × 1.65; 4 in 119.0 / 110.0 / 101.6 × 2.11; 6 in 166.9 (6.570 in) / 156.5 / 152.4 × 2.77; 8 in 217.7 (8.570 in) / 207.0 / 203.2 × 2.77; 10 in 268.5 / 261.0 / 254.0 × 3.40; 12 in 319.3 / 311.8 / 304.8 × 3.40.
DIN 32676 clamp ferrules, series A (metric), DN10 to DN150 size chart
| dn | tube od (mm) | wall (mm) | bore (mm) | flange (mm) | bead (mm) |
|---|---|---|---|---|---|
| DN10 | 13.0 | 1.5 | 10.0 | 34.0 | 27.5 |
| DN15 | 19.0 | 1.5 | 16.0 | 34.0 | 27.5 |
| DN20 | 23.0 | 1.5 | 20.0 | 34.0 | 27.5 |
| DN25 | 29.0 | 1.5 | 26.0 | 50.5 | 43.5 |
| DN32 | 35.0 | 1.5 | 32.0 | 50.5 | 43.5 |
| DN40 | 41.0 | 1.5 | 38.0 | 50.5 | 43.5 |
| DN50 | 53.0 | 1.5 | 50.0 | 64.0 | 56.5 |
| DN65 | 70.0 | 2.0 | 66.0 | 91.0 | 83.5 |
| DN80 | 85.0 | 2.0 | 81.0 | 106.0 | 97.0 |
| DN100 | 104.0 | 2.0 | 100.0 | 119.0 | 110.0 |
| DN125 | 129.0 | 2.0 | 125.0 | 155.0 | 146.0 |
| DN150 | 154.0 | 2.0 | 150.0 | 183.0 | 174.0 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| clamp face | flange Ø34 (DN10–DN20), 50.5 (DN25–DN40), 64 (DN50), 91 (DN65), 106 (DN80), 119 (DN100), 155 (DN125), 183 (DN150) | clamp, gasket and flange of the same size; 50.5 and 64 mate with the inch clamp of that flange size, the tube behind is metric | designed | all |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| DIN | DIN 32676 clamp connections, series A on DIN 11850 tube (DN10–DN150): flange and bead per the Rubber Fab chart | standard | DIN; dimensions are facts verify |
| Rubber Fab | Tri-clamp dimensions chart (ID, OD, bead per clamp size, ½ to 12 in and DIN 32676) | publisher's chart; dimensions cited, nothing copied | |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 24 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| ferrule-dn10-21.5mm | DN10 weld ferrule (DIN 32676 A): tube Ø13 × 1.5, flange Ø34, 21.5 long | STEP · STL |
| ferrule-dn10-28mm | DN10 weld ferrule (DIN 32676 A): tube Ø13 × 1.5, flange Ø34, 28 long | STEP · STL |
| ferrule-dn15-21.5mm | DN15 weld ferrule (DIN 32676 A): tube Ø19 × 1.5, flange Ø34, 21.5 long | STEP · STL |
| ferrule-dn15-28mm | DN15 weld ferrule (DIN 32676 A): tube Ø19 × 1.5, flange Ø34, 28 long | STEP · STL |
| ferrule-dn20-21.5mm | DN20 weld ferrule (DIN 32676 A): tube Ø23 × 1.5, flange Ø34, 21.5 long | STEP · STL |
| ferrule-dn20-28mm | DN20 weld ferrule (DIN 32676 A): tube Ø23 × 1.5, flange Ø34, 28 long | STEP · STL |
| ferrule-dn25-21.5mm | DN25 weld ferrule (DIN 32676 A): tube Ø29 × 1.5, flange Ø50.5, 21.5 long | STEP · STL |
| ferrule-dn25-28mm | DN25 weld ferrule (DIN 32676 A): tube Ø29 × 1.5, flange Ø50.5, 28 long | STEP · STL |
| ferrule-dn32-21.5mm | DN32 weld ferrule (DIN 32676 A): tube Ø35 × 1.5, flange Ø50.5, 21.5 long | STEP · STL |
| ferrule-dn32-28mm | DN32 weld ferrule (DIN 32676 A): tube Ø35 × 1.5, flange Ø50.5, 28 long | STEP · STL |
| ferrule-dn40-21.5mm | DN40 weld ferrule (DIN 32676 A): tube Ø41 × 1.5, flange Ø50.5, 21.5 long | STEP · STL |
| ferrule-dn40-28mm | DN40 weld ferrule (DIN 32676 A): tube Ø41 × 1.5, flange Ø50.5, 28 long | STEP · STL |
| ferrule-dn50-21.5mm | DN50 weld ferrule (DIN 32676 A): tube Ø53 × 1.5, flange Ø64, 21.5 long | STEP · STL |
| ferrule-dn50-28mm | DN50 weld ferrule (DIN 32676 A): tube Ø53 × 1.5, flange Ø64, 28 long | STEP · STL |
| ferrule-dn65-21.5mm | DN65 weld ferrule (DIN 32676 A): tube Ø70 × 2, flange Ø91, 21.5 long | STEP · STL |
| ferrule-dn65-28mm | DN65 weld ferrule (DIN 32676 A): tube Ø70 × 2, flange Ø91, 28 long | STEP · STL |
| ferrule-dn80-21.5mm | DN80 weld ferrule (DIN 32676 A): tube Ø85 × 2, flange Ø106, 21.5 long | STEP · STL |
| ferrule-dn80-28mm | DN80 weld ferrule (DIN 32676 A): tube Ø85 × 2, flange Ø106, 28 long | STEP · STL |
| ferrule-dn100-21.5mm | DN100 weld ferrule (DIN 32676 A): tube Ø104 × 2, flange Ø119, 21.5 long | STEP · STL |
| ferrule-dn100-28mm | DN100 weld ferrule (DIN 32676 A): tube Ø104 × 2, flange Ø119, 28 long | STEP · STL |
| ferrule-dn125-21.5mm | DN125 weld ferrule (DIN 32676 A): tube Ø129 × 2, flange Ø155, 21.5 long | STEP · STL |
| ferrule-dn125-28mm | DN125 weld ferrule (DIN 32676 A): tube Ø129 × 2, flange Ø155, 28 long | STEP · STL |
| ferrule-dn150-21.5mm | DN150 weld ferrule (DIN 32676 A): tube Ø154 × 2, flange Ø183, 21.5 long | STEP · STL |
| ferrule-dn150-28mm | DN150 weld ferrule (DIN 32676 A): tube Ø154 × 2, flange Ø183, 28 long | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-din-32676-ferrules

Fits with




Questions
Does a DIN 32676 DN40 fit a 1½ in tri-clamp?
Same 50.5 mm flange and clamp, so the joint mates; the tube is 41 × 1.5 instead of 38.1 × 1.65.
