Sanitary clamp gaskets, ISO 2852 Type B: ½ to 4 in
What are tri-clamp gasket dimensions for each size? · Standard part · basis: ISO 2852 Type B (web 1.7, bulges on the groove diameter 5.5 overall, lip 1.1 × 2.8) on each size; OD = flange − 1, lip ID = bore − 2.2
Also called: tri clamp gasket dimensions, sanitary gasket sizes, type b gasket 1.5 inch, tri clamp gasket stl
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 8 in table
Notes

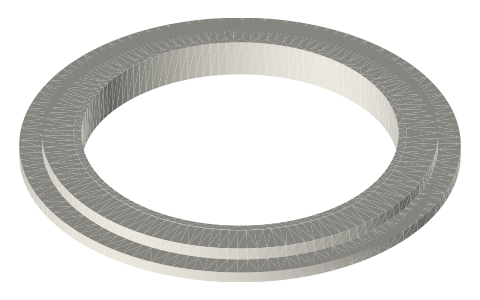

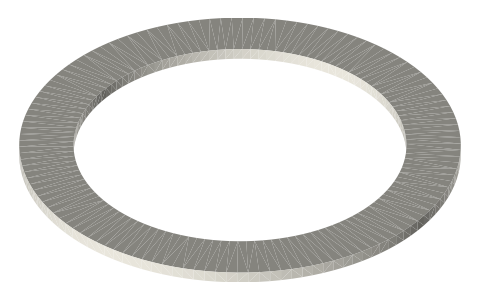

- The Type B gasket for each size: a 1.7 mm web on the flat faces, a bulge on each side on the groove diameter that sits in each face's gasket groove (5.5 mm over both, 0.3 squeeze each side), and a 1.1 mm inner lip 2.8 mm long, centred on the joint plane.
- OD = flange − 1 mm; bulges on the groove diameter; lip ID = bore − 2.2 mm. Each file is drawn for its tube size (the ½ and ¾ in gaskets differ only in lip ID).
- The 1.5 and 2 in gaskets on the tri-clamp gasket page have the same profile.
Sanitary clamp gaskets, ISO 2852 Type B: ½ to 4 in size chart
| size (in) | od (mm) | bulge on dia (mm) | lip id (mm) | overall (mm) | web (mm) |
|---|---|---|---|---|---|
| ½ | 24.0 | 20.4 | 7.2 | 5.5 | 1.7 |
| ¾ | 24.0 | 20.4 | 13.55 | 5.5 | 1.7 |
| 1 | 49.5 | 43.5 | 19.9 | 5.5 | 1.7 |
| 1½ | 49.5 | 43.5 | 32.6 | 5.5 | 1.7 |
| 2 | 63.0 | 56.5 | 45.3 | 5.5 | 1.7 |
| 2½ | 76.5 | 70.5 | 58.0 | 5.5 | 1.7 |
| 3 | 90.0 | 83.5 | 70.7 | 5.5 | 1.7 |
| 4 | 118.0 | 110.0 | 95.18 | 5.5 | 1.7 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| clamp faces | ISO 2852 / BPE flange | clamp + Type B gasket | clamp | all |
| gasket bulges in the face grooves | on the groove Ø per size, 5.5 overall, 0.3 squeeze each side | two ferrule faces (gasket grooves 1.6 deep) | designed | gasket-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| ASME | BPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall) | standard | ASME; dimensions are facts verify |
| ISO (via iTeh sample) | ISO 2852 clamp liners: face profile and flange / groove diameters | standard excerpt; dimensions are facts | |
| Dixon Sanitary | Clamp elbows, ferrules: dimension sheet | publisher's catalogue; dimensions cited, nothing copied | |
| Steel & O'Brien | Sanitary products catalog 2024 (clamp fittings dimension tables) | publisher's catalogue; dimensions cited, nothing copied | |
| Rubber Fab | Tri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50) | maker chart; dimensions are facts verify |
Free files
★ Free files 8 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| gasket-0.5in | ½ in Type B gasket (ISO 2852): OD 24, 1.7 web, bulges on Ø20.4 (5.5 overall), lip ID 7.20 × 2.8 long | STEP · STL |
| gasket-0.75in | ¾ in Type B gasket (ISO 2852): OD 24, 1.7 web, bulges on Ø20.4 (5.5 overall), lip ID 13.55 × 2.8 long | STEP · STL |
| gasket-1in | 1 in Type B gasket (ISO 2852): OD 49.5, 1.7 web, bulges on Ø43.5 (5.5 overall), lip ID 19.90 × 2.8 long | STEP · STL |
| gasket-1.5in | 1½ in Type B gasket (ISO 2852): OD 49.5, 1.7 web, bulges on Ø43.5 (5.5 overall), lip ID 32.60 × 2.8 long | STEP · STL |
| gasket-2in | 2 in Type B gasket (ISO 2852): OD 63, 1.7 web, bulges on Ø56.5 (5.5 overall), lip ID 45.30 × 2.8 long | STEP · STL |
| gasket-2.5in | 2½ in Type B gasket (ISO 2852): OD 76.5, 1.7 web, bulges on Ø70.5 (5.5 overall), lip ID 58.00 × 2.8 long | STEP · STL |
| gasket-3in | 3 in Type B gasket (ISO 2852): OD 90, 1.7 web, bulges on Ø83.5 (5.5 overall), lip ID 70.70 × 2.8 long | STEP · STL |
| gasket-4in | 4 in Type B gasket (ISO 2852): OD 118, 1.7 web, bulges on Ø110 (5.5 overall), lip ID 95.18 × 2.8 long | STEP · STL |
https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-gaskets

How it fits
Goes in or on
Connects to
Alternatives
You might also need
Questions
What size is a 2 inch tri-clamp gasket?
Ø63.0 OD, bulges on Ø56.5, lip ID Ø45.3; 5.5 mm over the bulges, 1.7 mm web.
Are ½ and ¾ inch gaskets the same?
Same Ø24.0 OD on the 25.0 mini flange; the lip ID differs: Ø7.2 for ½ in, Ø13.55 for ¾ in.
