Sanitary clamp weld ferrules, short and medium: ½ to 4 in

What are the flange and tube dimensions of each tri-clamp ferrule size? · Standard part · basis: ASME BPE / 3-A clamp-fitting dimensions published identically by Dixon and Steel & O'Brien; ISO 2852 face profile

Also called: tri clamp size chart, tri clamp flange diameter, sanitary ferrule dimensions, 14wmp ferrule, mini tri clamp 25mm

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
8 in table

Notes

  • A weld ferrule: one ISO 2852 face on a length of BPE tube. Short (14WMP) is 12.7 mm (0.5 in) long, medium (L14AM7) 28.6 mm (1.125 in).
  • Tube OD 12.7 / 19.05 / 25.4 / 38.1 / 50.8 / 63.5 / 76.2 / 101.6 mm, wall 1.65 mm (4 in: 2.11).
  • Flange: ½–¾ in share Ø25.0, 1–1½ in share Ø50.5, 2 in Ø64.0, 2½ in Ø77.5, 3 in Ø91.0, 4 in Ø119.0.
  • Faces are the ISO 2852 profile: flat from the bore out to the flange OD with one gasket groove centred on the groove diameter (1.6 deep, bottom radius 1.2, walls 23°, edge radius 0.8, 4.01 wide at the face), 2.85 mm rim, 20° back cone, on the BPE flange diameters; the groove diameter is ISO 2852's C2 and the bead diameter of published gasket charts (4 in Ø110.0 from the chart); on ½ and ¾ in it is derived (Ø20.4, centred between the ¾ in bore and the flange OD).

Sanitary clamp weld ferrules, short and medium: ½ to 4 in size chart

size (in)tube od (mm)wall (mm)bore (mm)flange od (mm)groove (mm)lengths (mm)
½12.71.659.425.018.012.7 / 28.6
¾19.051.6515.7525.018.012.7 / 28.6
125.41.6522.150.543.512.7 / 28.6
1½38.11.6534.850.543.512.7 / 28.6
250.81.6547.564.056.512.7 / 28.6
2½63.51.6560.277.570.512.7 / 28.6
376.21.6572.991.083.512.7 / 28.6
4101.62.1197.38119.0111.512.7 / 28.6

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
clamp facesISO 2852 / BPE flangeclamp + Type B gasketclampall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
Dixon SanitaryClamp elbows, ferrules: dimension sheetPDFpublisher's catalogue; dimensions cited, nothing copied
Steel & O'BrienSanitary products catalog 2024 (clamp fittings dimension tables)PDFpublisher's catalogue; dimensions cited, nothing copied
Rubber FabTri-Clamp gasket dimensional chart: gasket ID, OD and bead diameter per size (2 in bead 2.22 in / 56.50 mm, 1.5 in 1.71 / 43.50, 3 in 3.29 / 83.50)PDFmaker chart; dimensions are facts verify

Free files

★ Free files 16 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
ferrule-0.5in-12.7mm½ in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-0.5in-28.6mm½ in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
ferrule-0.75in-12.7mm¾ in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-0.75in-28.6mm¾ in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
ferrule-1in-12.7mm1 in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-1in-28.6mm1 in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
ferrule-1.5in-12.7mm1½ in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-1.5in-28.6mm1½ in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
ferrule-2in-12.7mm2 in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-2in-28.6mm2 in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
ferrule-2.5in-12.7mm2½ in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-2.5in-28.6mm2½ in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
ferrule-3in-12.7mm3 in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-3in-28.6mm3 in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
ferrule-4in-12.7mm4 in short weld ferrule (14WMP), 0.5 in longSTEP · STL
ferrule-4in-28.6mm4 in medium weld ferrule (L14AM7), 1.125 in longSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=sanitary-clamp-ferrules

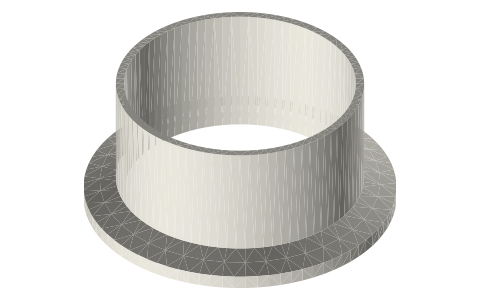

Sanitary clamp weld ferrules, short and medium: ½ to 4 in, isometric render of a generated part
Render of ferrule-2in-28.6mm from the free STEP; not to scale.

You might also need

Questions

What is the flange diameter of a 2 inch tri-clamp?

64.0 mm; 1 and 1½ in share 50.5, ½ and ¾ in share 25.0, 2½ in 77.5, 3 in 91.0, 4 in 119.0.

Is a 1½ inch tri-clamp the same as a 1 inch?

Same Ø50.5 flange and clamp, different tube: 38.1 vs 25.4 mm OD.

What is the wall of sanitary tube?

1.65 mm (0.065 in) from ½ to 3 in; 2.11 mm (0.083 in) at 4 in.
