Shaft spacers for Ø3, Ø5 and Ø8 shafts, 1 to 5 mm

What thrust spacers set the gaps along a small crankshaft? · Hardware · basis: Flat rings at the shaft Ø, OD = shaft + 5, in 1, 2, 3 and 5 mm thicknesses

Also called: shaft spacer 5mm, thrust washer 8mm shaft, crankshaft spacer, 3mm shaft spacer

Long Earth Society build part. The shafts, rods and pins every engine here turns on. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • Flat rings: Ø3 × Ø8, Ø5 × Ø10 and Ø8 × Ø13 (bore × OD), each 1, 2, 3 and 5 thick.
  • Stacked on the shaft they set the 1 mm gaps between tower, web, rod and flywheel; any gap from 1 to 11 mm is a sum of the four.
  • The bore is the shaft Ø; the fit is listed under Mating features.

Shaft spacers for Ø3, Ø5 and Ø8 shafts, 1 to 5 mm size chart

shaft ØODthicknesses
381 / 2 / 3 / 5
5101 / 2 / 3 / 5
8131 / 2 / 3 / 5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
shafts, rods, pinsØ3 / Ø5 / Ø8the bores listed on each mating objectslideall
spacer boreØ3 / Ø5 / Ø8shaftslidespacer-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 12 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
spacer-3mm-t1thrust spacer for a Ø3 shaft, 1 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-3mm-t2thrust spacer for a Ø3 shaft, 2 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-3mm-t3thrust spacer for a Ø3 shaft, 3 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-3mm-t5thrust spacer for a Ø3 shaft, 5 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-5mm-t1thrust spacer for a Ø5 shaft, 1 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-5mm-t2thrust spacer for a Ø5 shaft, 2 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-5mm-t3thrust spacer for a Ø5 shaft, 3 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-5mm-t5thrust spacer for a Ø5 shaft, 5 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-8mm-t1thrust spacer for a Ø8 shaft, 1 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-8mm-t2thrust spacer for a Ø8 shaft, 2 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-8mm-t3thrust spacer for a Ø8 shaft, 3 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
spacer-8mm-t5thrust spacer for a Ø8 shaft, 5 mm: sets the 1 mm gaps between tower, web, rod and flywheelSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=shaft-spacers

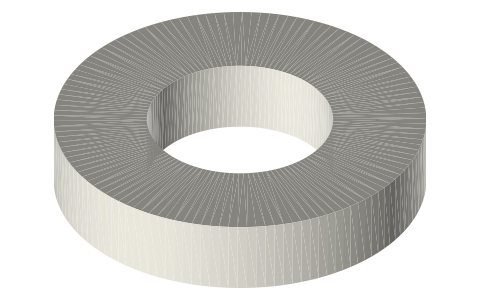

Shaft spacers for Ø3, Ø5 and Ø8 shafts, 1 to 5 mm, isometric render of a generated part
Render of spacer-5mm-t2 from the free STEP; not to scale.

You might also need

Questions

What spacer goes on a 5 mm crankshaft?

Ø5 bore × Ø10 OD, 1, 2, 3 or 5 thick.

How do I make a 4 mm gap?

Stack the 1 and 3, or two 2s.
