90° elbow for 4 × 6 mm tube

What 90 degree elbow joins 4 × 6 mm tube? · Hardware · basis: Tube sizes from the silicone-tube entry (4 ID × 6 OD); sockets drawn at the tube OD, flow bore at the tube ID

Also called: 4mm tube elbow, 6mm od tube 90 degree elbow, silicone tube elbow, stirling transfer tube elbow

Long Earth Society build part. Turns the syringe engines' transfer lines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

length
18.0 mm
width
18.0 mm
height
10 mm

Notes

  • Two Ø10 arms at 90° meet in a rounded corner. Each arm ends in a port face 13 mm from the corner with a Ø6 socket 8 deep: the 6 mm OD tube pushes in until its end bottoms 5 mm from the corner. A Ø4 flow bore (the tube's ID) joins the two socket floors through the corner.
  • Used where a transfer line has to turn: two on the can engine (up from the cap barb, across, up into the Luer tip), two on the Ross yoke alpha (tips up, 40 mm apart: up, across, down), three on the alpha V-twin (tips pointing away from each other at ±45°).
  • The sockets take the tube's OD exactly (see Mating features).

90° elbow for 4 × 6 mm tube size chart

featuresize (mm)
arm OD10
port face from corner13.0
socketØ6 × 8
tube end from corner5.0
flow boreØ4

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
socketsØ6 × 86 mm OD of 4 × 6 tubepresstransfer-elbow-*
flow boreØ44 mm tube ID (no contact)designedtransfer-elbow-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
transfer-elbow-4mm90° transfer elbow for 4 × 6 tube: Ø10 arms, port faces 13 from the corner, Ø6 sockets 8 deep, Ø4 flow boreSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=transfer-elbow-4mm

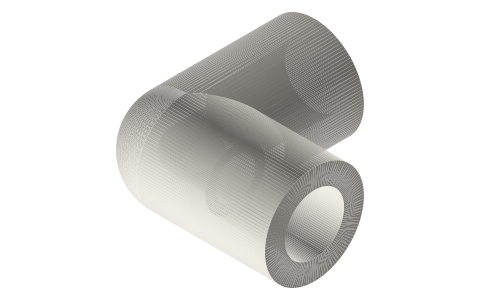

90° elbow for 4 × 6 mm tube, isometric render of a generated part
Render of transfer-elbow-4mm from the free STEP; not to scale.

Fits with

Questions

How far does the tube go into the transfer elbow?

8 mm, to the socket floor; the tube end then sits 5 mm from the corner and the Ø4 bore carries on round it.
