Transfer tee for 4 × 6 mm tube

What tee joins three 4 × 6 mm tubes? · Hardware · basis: Sockets at the 6 mm OD of 4 × 6 tube (fit: press), flow bores at its 4 mm ID

Also called: 4mm tube tee, alpha stirling transfer tube, transfer tee stl

Long Earth Society build part. Alpha demonstrator and the twin-crank for the two-spool alpha. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
4 in table

Notes

  • A tee with a Ø10 body: the run along X with port faces 13 mm either side of the centre, the branch at right angles with its port face 13 mm out.
  • Each port is a Ø6 socket 8 deep: the 6 mm OD of 4 × 6 tube pushes in (fit: press) until it bottoms 5 mm from the centre. Ø4 flow bores, the tube's ID, join the three socket floors.
  • Same ports as the transfer elbow; the tee joins three lines (hot cylinder, cold cylinder and a third line such as a gauge).

Transfer tee for 4 × 6 mm tube size chart

parametervalue
bodyØ10, run 26 port to port, branch 13
socketsØ6 × 8 (3)
flow boresØ4
tube end from centre5

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
transfer-tee socketsØ6 × 86 mm OD of 4 × 6 tubepresstransfer-tee-*
transfer-tee flow boresØ44 mm tube ID (no contact)designedtransfer-tee-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaStirling enginewebCC BY-SA 4.0 (text)
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Generated by Xem Studio from the standard; threads are plain cylinders at major diameter. CC BY 4.0. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
transfer-tee-4mmtransfer tee for 4 × 6 tube: Ø10 run (port faces ±13) and branch (port face 13), Ø6 sockets 8 deep for the 6 mm tube OD, Ø4 flow bores (the tube ID)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=transfer-tee-4mm

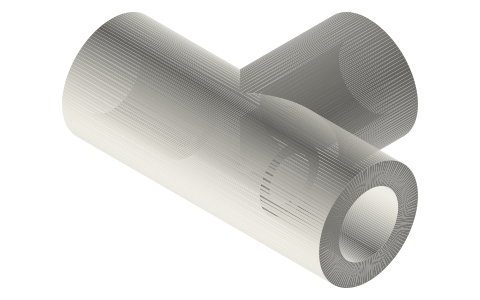

Transfer tee for 4 × 6 mm tube, isometric render of a generated part
Render of transfer-tee-4mm from the free STEP; not to scale.

Questions

What size tube does the transfer tee take?

4 × 6 tube: the 6 mm OD goes into Ø6 sockets 8 deep (fit: press); the Ø4 flow bores match the tube's ID.

What turns a transfer line through 90°?

The transfer elbow, with the same Ø6 × 8 sockets; the two-syringe alphas on this site use elbows between their tips.
