Wire mesh discs Ø44 / Ø32 × 0.5 mm, mesh #40 to #200

What wire mesh discs fit a 44 or 32 mm bore? · Hardware · basis: ASTM E11 wire-mesh geometry (mesh count, wire diameter, opening); discs drawn at the regenerator cage bores, Ø44 and Ø32 × 0.5, Ø3 centre hole

Also called: stirling regenerator mesh size, mesh 100 wire diameter, astm e11 mesh, regenerator matrix, regenerator disc size

Used in Long Earth Society builds. 3-foot Stirling engine

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
6 in table

Notes

  • The file is one regenerator matrix disc at its exact size: the bore of its cage (Ø44 or Ø32) × 0.5 mm, with a Ø3 centre hole the displacer rod passes through, drawn as a solid disc (the mesh weave is not modelled).
  • Mesh count → wire Ø / opening (ASTM E11): #40 0.25 / 0.42 mm, #60 0.19 / 0.25, #80 0.14 / 0.18, #100 0.10 / 0.15, #150 0.066 / 0.104, #200 0.053 / 0.074.
  • Regenerators use #100–#200 discs stacked loosely to 60–70 % porosity; #40–#60 suits low-temperature demonstrators where flow loss matters more than heat capacity.

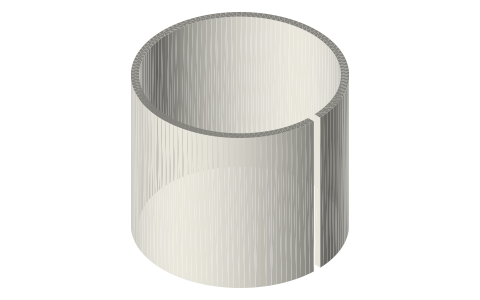

  • On my engines the regenerator is a split cage filled with a stack of #100 matrix discs.

Wire mesh discs Ø44 / Ø32 × 0.5 mm, mesh #40 to #200 size chart

meshwire (mm)opening (mm)use
#400.250.42low-temperature demonstrator
#600.190.25low-temperature demonstrator
#800.140.18regenerator
#1000.10.15regenerator
#1500.0660.104regenerator
#2000.0530.074high-temperature regenerator

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
mesh disc ODØ44 / Ø32regenerator cage bore Ø44 / Ø32socketmesh-disc-*
mesh disc centre holeØ3Ø3 displacer rod (passes through)runmesh-disc-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaMesh (scale)webCC BY-SA 4.0 (text)
WikipediaRegenerative heat exchangerwebCC BY-SA 4.0 (text)
WikipediaSteel woolwebCC BY-SA 4.0 (text)
McMaster-CarrWire cloth (free STEP per part, for your own design use; no redistribution)STEP, PDFMcMaster-Carr site terms verify
Long Earth SocietyEngine and rig buildsweb, videoLES site

Free files

★ Free files 2 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
mesh-disc-44mmregenerator mesh disc Ø44 × 0.5 with a Ø3 centre hole for the displacer rod: the bore of regenerator-cage-47-5x40 (Ø44), one disc of the stack that fills itSTEP · STL
mesh-disc-32mmregenerator mesh disc Ø32 × 0.5 with a Ø3 centre hole for the displacer rod: the bore of regenerator-cage-34-8x30 (Ø32), one disc of the stack that fills itSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=wire-mesh-discs-44-32

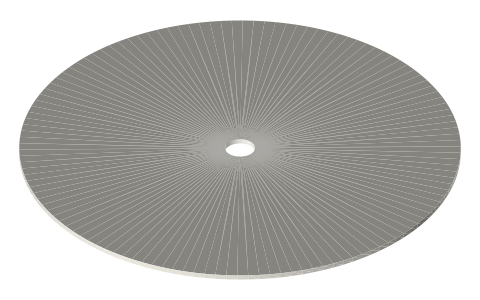

Wire mesh discs Ø44 / Ø32 × 0.5 mm, mesh #40 to #200, isometric render of a generated part
Render of mesh-disc-44mm from the free STEP; not to scale.

You might also need

Questions

What mesh size for a Stirling regenerator?

#100 to #200 (0.10–0.053 mm wire) stacked loosely to 60–70 % porosity; #40–#60 for low-temperature demonstrators.

What is the wire diameter of #100 mesh?

0.10 mm with a 0.15 mm opening (ASTM E11); #200 is 0.053 mm wire, 0.074 opening.

What diameter is the regenerator disc?

Ø44 × 0.5 mm for the 2 in regenerator cage (its Ø44 bore) and Ø32 × 0.5 for the 1.5 in cage, each with a Ø3 centre hole for the displacer rod.
