Crank webs: Ø8 bore, Ø3 crank pin at 8, 12 and 18 mm throw
What crank web fits an 8 mm shaft with a 3 mm pin? · Hardware · basis: Stroke 16 / 24 / 36 mm (0.46 × bore) for the 1.5 / 2 / 3 in pistons; web Ø = 2 × (throw + 6)
Also called: crank web 8mm shaft, crank disc 24mm stroke, stirling crank web stl, tri clamp crank web
Long Earth Society build part. Full-bore pistons for the tri-clamp beta and alpha engines. Long Earth Society
Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features
- sizes
- 3 in table
Notes

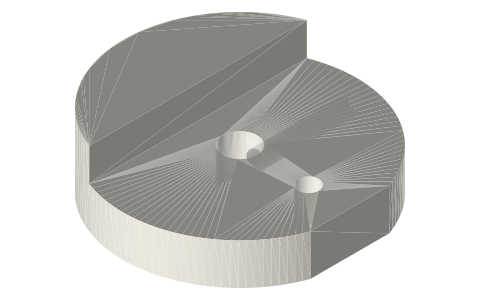

- A round crank web: Ø8 shaft bore, Ø3 crank-pin hole at half the stroke, and an Ø2.5 radial hole for an M3 grub onto the shaft. Two webs face each other with the pin between them.
- 1.5 in: Ø28, pin at 8 mm (16 mm stroke). 2 in: Ø36, pin at 12 mm (24 mm stroke). 3 in: Ø48, pin at 18 mm (36 mm stroke). All 5 mm thick.
- Shaft order: tower, web, con-rod, web, tower with 1 mm gaps, inside the crank frame's 21 mm tower gap; the crank pin between the webs is Ø3 × 19.
Crank webs: Ø8 bore, Ø3 crank pin at 8, 12 and 18 mm throw size chart
| spool (in) | web od (mm) | shaft bore (mm) | pin hole (mm) | throw (mm) | stroke (mm) | thickness (mm) |
|---|---|---|---|---|---|---|
| 1.5 | 28 | 8 | 3 | 8 | 16 | 5 |
| 2 | 36 | 8 | 3 | 12 | 24 | 5 |
| 3 | 48 | 8 | 3 | 18 | 36 | 5 |
Mating features
Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.
| feature | exact | mates with | fit | files |
|---|---|---|---|---|
| crank-web shaft bore | Ø8 | Ø8 D-flat crankshaft | slide | crank-web-* |
| crank-web pin hole | Ø3 | Ø3 crank pin | press | crank-web-* |
| crank-web grub hole | Ø2.5 | M3 tap drill | designed | crank-web-* |
Where the files are
Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.
| Long Earth Society | Tri-clamp Stirling engine builds | web, video | LES site |
| James R. Senft | An Introduction to Stirling Engines (piston fit and leakage) | book | Moriya Press verify |
| ASME | BPE tube dimensions (16 ga sanitary tube) | standard | ASME verify |
Free files
★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json
Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.
Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp- Claude: Add to Claude
- ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
- Cursor: install with one click. VS Code: install with one click.
| crank-web-1.5in-s16 | 1.5 in crank web: Ø8 bore on the D-flat shaft with an M3 tapped grub hole, Ø3 pin at 8 mm (16 mm stroke); two per crank | STEP · STL |
| crank-web-2in-s24 | 2 in crank web: Ø8 bore on the D-flat shaft with an M3 tapped grub hole, Ø3 pin at 12 mm (24 mm stroke); two per crank | STEP · STL |
| crank-web-3in-s36 | 3 in crank web: Ø8 bore on the D-flat shaft with an M3 tapped grub hole, Ø3 pin at 18 mm (36 mm stroke); two per crank | STEP · STL |
