Tri-clamp finned cooler: clamp-on halves for a 2 in tube

What finned cooler fits a tri-clamp fitting? · Hardware · basis: ASME BPE 2 in tube OD (Ø50.8); clearance under a standard clamp; fin sizes are design values

Also called: tri clamp heat sink, finned tri clamp cooler, stirling cold side fins, clamp on fins 2 inch tube

Used in Long Earth Society builds. Finned tri-clamp heat sink with PTFE thermal break

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
1 in table

Notes

  • Two halves close on the tube OD between the clamps of a 3 in spool (61.9 mm of plain tube); each half is 56 long with a 3 mm sleeve and nine Ø88 × 2 fins at 6 mm pitch.
  • A separate, optional heat exchanger: the spool or cup it clamps on stays a plain standard part, and an engine is complete without it (with less power). The halves can be made any way you like.
  • The halves leave 1 mm between them; four M4 × 30 screws and nuts through the ears pull them onto the tube (clamp fit).
  • The fins clear the clamps: the clamp ring reaches 7.1 mm past the ferrule face, the cooler starts 3 mm beyond that.

Tri-clamp finned cooler: clamp-on halves for a 2 in tube size chart

size (in)bore (mm)length (mm)fin od (mm)finsscrews
250.856.088.094 × M4 × 30 + nuts

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
boreØ50.82 in tube ODclampcooler-half-*
ear holesØ4.5M4 clearance (ISO 273 medium)designedcooler-half-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (clamp fitting dimensions, tube OD and wall)standardASME; dimensions are facts verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
cooler-half-2in-56clamp-on finned cooler half for the 2 in tube OD (Ø50.8 bore) × 56: 3 mm sleeve, fins Ø88 × 2 at 6 pitch, ears with 2 × Ø4.5 (M4) each sideSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-finned-cooler

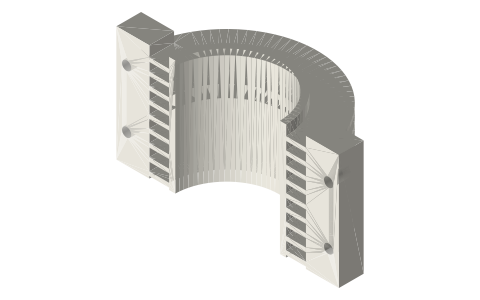

Tri-clamp finned cooler: clamp-on halves for a 2 in tube, isometric render of a generated part
Render of cooler-half-2in-56 from the free STEP; not to scale.

Fits with

Questions

Does it fit between the clamps of a 3 in spool?

Yes: 56 mm on 61.9 mm of plain tube, 3 mm clear of each clamp.

Is there a liquid-cooled option?

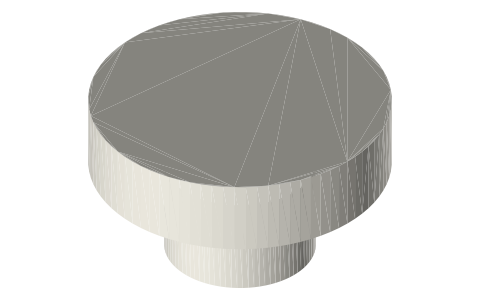

The jacket shell on this site clamps on the same tube in the same place.
