Short 2 in tri-clamp spools: 48.65, 58.65 and 68.65 mm (fabrication spec)

What short custom 2 inch tri-clamp spools can be ordered? · Hardware · basis: Fabrication specs on standard 2 in ferrules (ISO 2852 faces as gen_hardware draws them, BPE tube Ø50.8 × 1.65); length = stack + ambient exchanger 10 + end spacer 9.8 + Type B lip 0.55 − 1.7 (the stack stands 1.7 into the hot joint's flat ring)

Also called: thermoacoustic stack spool, custom length tri clamp spool 68.65, stack section tri clamp, 2 inch spool for thermoacoustic stack

Long Earth Society build part. The stack section of my modular thermoacoustic engine. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • A plain 2 in clamp × clamp spool, ordered from a sanitary fabricator to length, that makes the stack its own section: the stack stands on the hot exchanger in the section below, through the hot joint's flat ring; the ambient exchanger sits on the stack; an 8.4 spacer runs from the exchanger to the Type B gasket lip at the top face. Nothing is welded inside.
  • The length is set so the column fits exactly: stack + 10 + 9.8 + 0.55 − 1.7. The ambient exchanger then sits 10.35–20.35 below the top face, so the 14 mm water jacket clamps over it at 9.35 mm from the face, clear of the joint's clamp.
  • Spec line: '2 in × L mm clamp × clamp spool, tube Ø50.8 × 1.65, two standard 2 in ferrules'. The lower end runs at the hot exchanger's temperature: the builder checks the spool, the ring and the clamp at that temperature.

Short 2 in tri-clamp spools: 48.65, 58.65 and 68.65 mm size chart

spoolface to face (mm)stackstack (mm)ambient exchanger (mm)end spacer (mm)jacket from lower face (mm)
spool-2in-48.65mm48.64999999999999stack-spiral-2in-30-g1.03010.09.825.3
spool-2in-58.65mm58.64999999999999stack-spiral-2in-40-g1.04010.09.835.3
spool-2in-68.65mm68.64999999999999stack-spiral-2in-50-g1.05010.09.845.3

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
facesISO 2852 2 in, both ends (land Ø56.5–Ø64, rim 2.85, 1.6 recess, 20° back)J1: flat hot ring + high-pressure clamp; J2: Type B gasket + high-pressure clampclampall
boreØ47.5 × face to facestack, ambient exchanger disc and 8.4 end spacerslideall
tube outsideØ50.8 between the ferrule hubswater jacket and spool hanger bores Ø50.8clampall
length48.65 / 58.65 / 68.65stack + 10 + 8.4 + 1.95 − 1.7: the column fits to the J2 gasket lipdesignedall

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

ISO (via iTeh sample)ISO 2852 clamp liners: face profile and flange / groove diametersPDFstandard excerpt; dimensions are facts
ASMEBPE Bioprocessing Equipment (tube OD and wall, clamp fittings)standardASME; dimensions are facts verify
Xem Studiotools/gen_ta_modular.py: the section geometry, the network model and every number on these pagescodeCC BY 4.0
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 3 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
spool-2in-48.65mm2 in × 48.65 mm clamp × clamp spool, ISO 2852 faces both ends, Ø47.5 bore: the stack section for a 30 mm stack (stack-spiral-2in-30-g1.0), the ambient exchanger and the 9.8 end spacerSTEP · STL
spool-2in-58.65mm2 in × 58.65 mm clamp × clamp spool, ISO 2852 faces both ends, Ø47.5 bore: the stack section for a 40 mm stack (stack-spiral-2in-40-g1.0), the ambient exchanger and the 9.8 end spacerSTEP · STL
spool-2in-68.65mm2 in × 68.65 mm clamp × clamp spool, ISO 2852 faces both ends, Ø47.5 bore: the stack section for a 50 mm stack (stack-spiral-2in-50-g1.0), the ambient exchanger and the 9.8 end spacerSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=tri-clamp-short-spools-2in

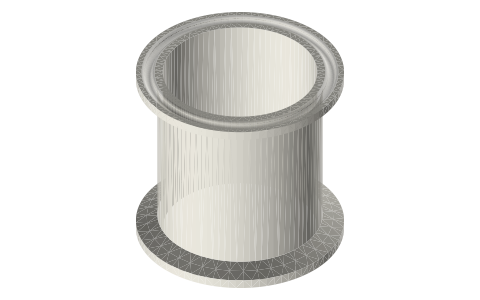

Short 2 in tri-clamp spools: 48.65, 58.65 and 68.65 mm (fabrication spec), isometric render of a generated part
Render of spool-2in-58.65mm from the free STEP; not to scale.

Fits with

Questions

Can I order these?

Yes: plain 2 in tube on two standard ferrules, cut to the length in the table.

Why three lengths?

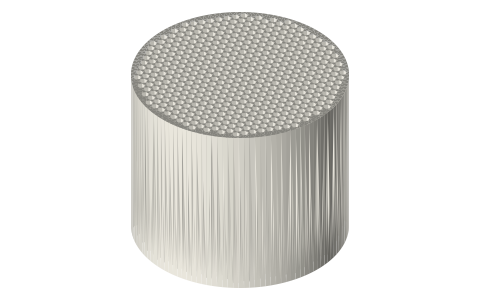

One per stack length on this site (30, 40, 50 mm spiral stacks). A shorter stack gives more power and less efficiency (the modular engine's page compares them).
