Waved wheel on an upright shaft lifting and lowering a bar

How does a waved wheel make a bar rise and fall? · Hardware · basis: Xem Studio design following Brown No. 165 (1868)

Also called: waved wheel, face cam, wave cam, undulating face cam, rueda ondulada con barra, Wellenscheibe mit Stößel

Exact dimensions. True size, with no tolerance added.

sizes
4 in table

Notes

  • Resize: multiply every length by one factor k and the motion stays identical: angles, ratios, timing and the formulas below do not change, because a mechanism's motion depends only on the ratios of its lengths. Here, scales with k: wheel, stroke.
  • Resize: Scale base radius and lift together: the motion law and the pressure angle stay the same. Raising lift alone steepens the pressure angle and the follower can jam.
  • Resize: fit clearances stay in mm (a slide fit is the same gap at any size); keep every printed wall and pin at least two nozzle widths; mass grows with k³ but part strength only with k², so at k = 2 parts are about 8× heavier and 4× stronger: check pins and thin links when scaling up.
  • The upper face of a wheel on an upright shaft rises and falls in waves round its circumference. A bar standing on it through a roller is lifted by each crest and lowered by each hollow as the wheel turns: two waves give two strokes per turn, with the motion of the wave's shape (here a sine).

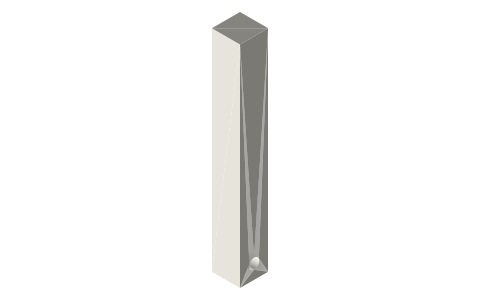

  • Ø60 wheel, face z = 14 + 4 sin 2θ (8 mm stroke, two per turn); a 623 bearing on a radial pin under an 8 × 8 bar rests on it, drawn on a crest. The bar's guide is not drawn.
  • Brown's No. 165 (waved wheel on an upright shaft giving a rising and falling motion to a bar).
  • Parts (each has its own page): waved-face-wheel-60-2-waves-a4-bore8, waved-wheel-follower-bar-8x8-roller-pin, ball-bearings-metric, dowel-pins-metric, linear-shafts-h6.
  • Brown's movement No. 165 (1868) shows it; this model is a Xem Studio design following his figure, every part at true size.

Waved wheel on an upright shaft lifting and lowering a bar size chart

parametervalue
wheelØ60, 2 waves
stroke8 mm
strokes per turn2
roller623 bearing, radial axis

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Henry T. Brown (1868, public domain)Five Hundred and Seven Mechanical Movements — scan on archive.orgwebPublisher's page; dimensions are facts
507movements.comBrown's movement No. 165: figure, his text and an animationwebPublisher's page; dimensions are facts

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
waved-wheel-reciprocating-bar-mechanism-assemblyAssembled mechanism, all parts placed at one pose (STEP keeps each part separate)STEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=waved-wheel-reciprocating-bar-mechanism

Waved wheel on an upright shaft lifting and lowering a bar, isometric render of a generated part
Render of waved-wheel-reciprocating-bar-mechanism-assembly from the free STEP; not to scale.

Fits with

Questions

How does a waved wheel make a bar rise and fall?

The upper face of a wheel on an upright shaft rises and falls in waves round its circumference. A bar standing on it through a roller is lifted by each crest and lowered by each hollow as the wheel turns: two waves give two strokes per turn, with the motion of the wave's shape (here a sine).
