Crank set for Ø12 shafts: webs, link web, con-rods and clevis

What crank set fits 12 mm shafts? · Hardware · basis: Exact geometry; designed running gaps between every moving plane

Also called: stirling built up crank, gamma stirling crank 90 degrees, tri clamp cross crankcase crank

Long Earth Society build part. Parts of the HTD engines. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
8 in table

Notes

  • Built-up crank on Ø12 shafts in 6001 bearings: web A (displacer throw r 4) – Ø5 pin through the displacer con-rod's 625 – link web – Ø5 pin through the piston con-rod's 625 – web C (piston throw r 20). The displacer pin leads the piston pin by 90°.
  • Planes along the shaft (x): web A disc −9.5..−3.5, displacer con-rod −2.5..2.5, link web 3.5..9.5, piston con-rod 10.5..15.5, web C 16.5..22.5: 1.0 between every rod and web (designed). Pins are Ø5 × 16 dowels pressed in the webs.
  • Con-rods 60 (displacer, to the clevis on the rod) and 237 (piston, down through the reducer to the piston's cheeks); every eye runs on a 625. Sweep radius 31 (piston eye) inside the 3 in cross bore Ø72.9.

Crank set for Ø12 shafts: webs, link web, con-rods and clevis size chart

partrolesize
crank-web-r8-b12displacer webr 4
crank-web-link-r8-r20link webr 4 / 20
crank-web-r20-b12piston webr 20
conrod-60-625con-rod60.0
conrod-237-625con-rod237.0
rod-clevis-6-pin5rod clevisØ6 rod, Ø5 pin
shaft-12x76shaft76
shaft-12x210shaft210

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
web and hub boresØ12Ø12 shafts (M4 grub on each hub)slidecrank-web-*
pin boresØ5dowel-5x16 crank pinspresscrank-web-*
con-rod pocketsØ16 × 5bearing-625 outer ringpressconrod-*
clevis socketØ6 × 14displacer rod, M4 grubsliderod-clevis-*
clevis slot and pin6.0 wide, Ø55 thick con-rod; dowel-5x16pressrod-clevis-*
plane gaps1.0 between every web and con-rod planeneighbouring webs and rodsdesignedall
shaftsØ12bearing-6001 inner ringspressshaft-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 8 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crank-web-r8-b12crank web, hub type: disc R12 × 6 with a Ø5 pin at r 4 (8 displacer stroke), hub Ø24 × 8, Ø12 bore in the hub only, M4 tapped radial holeSTEP · STL
crank-web-link-r8-r20link web 6 thick: Ø5 displacer pin at r 4 and Ø5 piston pin at r 20, 90° apartSTEP · STL
crank-web-r20-b12crank web, hub type: disc R28 × 6 with a Ø5 pin at r 20 (40 piston stroke), hub Ø24 × 8, Ø12 bore through, M4 tapped radial holeSTEP · STL
conrod-60-625con-rod 60 centres, 5 thick, Ø16 pockets for 625 bearings, eyes Ø22STEP · STL
conrod-237-625con-rod 237 centres, 5 thick, Ø16 pockets for 625 bearings, eyes Ø22STEP · STL
rod-clevis-6-pin5rod clevis: 13 × 14 × 41 block, slot 6 wide for a 5 con-rod, Ø5 pin bore, Ø6 rod socket 14 deep, M4 tapped radial holeSTEP · STL
shaft-12x76Ø12 × 76 crankshaft, −X (main): blind-cap 6001 to web A's hubSTEP · STL
shaft-12x210Ø12 × 210 crankshaft, +X: web C, two 6001, the seal, gear and flywheelSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=crank-set-12mm-shafts

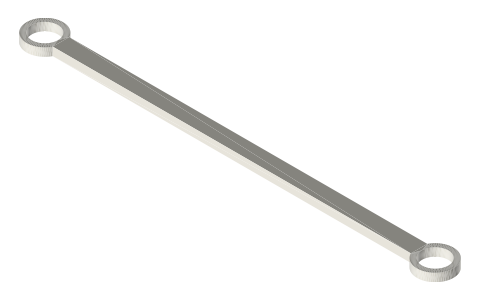

Crank set for Ø12 shafts: webs, link web, con-rods and clevis, isometric render of a generated part
Render of conrod-237-625 from the free STEP; not to scale.

Fits with

Questions

Why a built-up crank?

One-piece con-rod eyes on 625 bearings slide onto the pins before the webs close up; nothing has to be split.
