Rhombic drive crank pin Ø3 × 17

What crank pin does a small rhombic drive use? · Hardware · basis: Ø3 pin at the gear's Ø3 crank-pin hole; 0.4 chamfer on one end; length = gear web + 1 mm + two links

Also called: rhombic crank pin, 3 x 14 pin, 3mm crank pin

Long Earth Society build part. The balanced beta drive for the 2 in tri-clamp engine; the rhombic frame head in the linkage fittings carries it on the spool. Long Earth Society

Exact dimensions. Every file is drawn at true size with no tolerance added. The holes and pins that meet another part are listed below under Mating features, with the fit each joint needs; open those by your process's clearance before making the part. Mating features

sizes
3 in table

Notes

  • The crank pin pressed into each rhombic gear 7 mm off its axis: Ø3 × 17 with a 0.4 mm chamfer on one end.
  • It runs from the gear web's back face through the web (6, fit: press), a 1 mm gap and the lower and upper links (5 each, fit: run), ending flush with the upper link.

Rhombic drive crank pin Ø3 × 17 size chart

parametervalue
diameter3
length17.0
chamfer0.4

Mating features

Drawn at the exact size. Open press, slide, run and socket features by your process's clearance (tolerances by process); leave designed gaps and clamp fits as drawn.

featureexactmates withfitfiles
crank pinØ3 × 17gear pin hole (press) and two link ends (run)presscrank-pin-*

Where the files are

Other publishers' files are linked, not hosted. "verify" = check the license at the link before commercial use.

WikipediaRhombic drivewebCC BY-SA 4.0 (text)
WikipediaStirling enginewebCC BY-SA 4.0 (text)
Philips Research / MeijerThe Philips Stirling engine (rhombic drive papers, 1958–1965)webreference verify
Long Earth SocietyEngine buildsweb, videoLES site

Free files

★ Free files 1 parts. Xem Studio design: free to use, print and sell things from; not to be republished as files. Xem Studio Design License. index.json

Use this part in your AI. Your AI gets the exact sizes and files straight from Xem and can design a mount, case or adapter around it. Direct downloads here are limited to one file every 10 minutes; through your AI they are unlimited.

Connect Xem to your AI (free, no account, about a minute)
https://xemstudio.com/mcp
  1. Claude: Add to Claude
  2. ChatGPT (Plus or higher): open Connectors → Advanced → turn on Developer mode → Create → paste the address, no authentication → Create.
  3. Cursor: install with one click. VS Code: install with one click.
Other apps and full steps
crank-pin-3x17Ø3 × 17 crank pin: through the gear web, a 1 mm gap, the lower and the upper linkSTEP · STL
Let your AI pull this. Add https://xemstudio.com/mcp to Claude, ChatGPT, Cursor or any MCP client (free, no account, one minute) and it can look up exact sizes, mating fits and free STEP/STL from every chat.
Set it up →

Plain text: sheet.txt · JSON: /api/geometry?object=rhombic-crank-pin

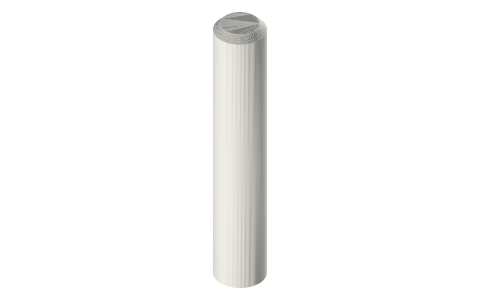

Rhombic drive crank pin Ø3 × 17, isometric render of a generated part
Render of crank-pin-3x17 from the free STEP; not to scale.

You might also need

Questions

What pin goes in the rhombic crank gear?

A Ø3 × 17 pin pressed into the Ø3 hole 7 mm off centre; two links turn on it.

Why is the crank pin 17 mm long?

Gear web 6 + 1 mm gap + two 5 mm links: it ends flush with the outer link, short of the yokes' plane.
